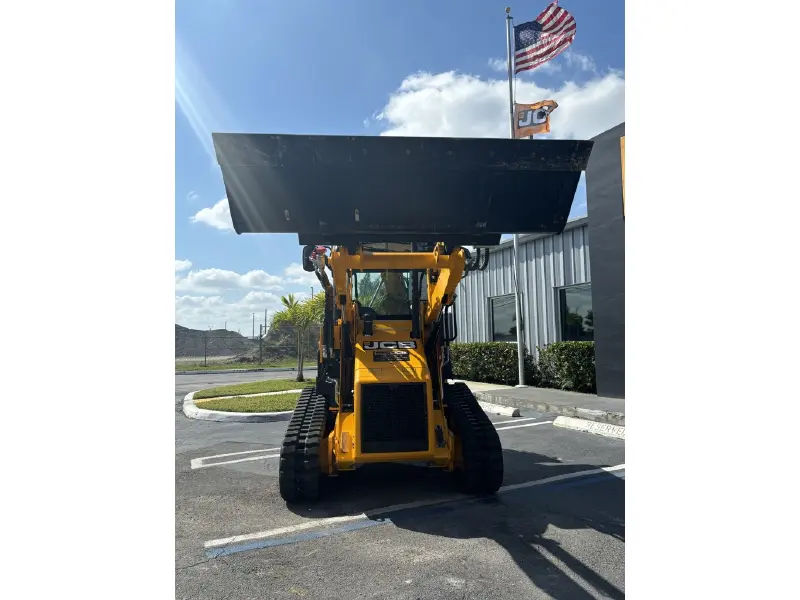

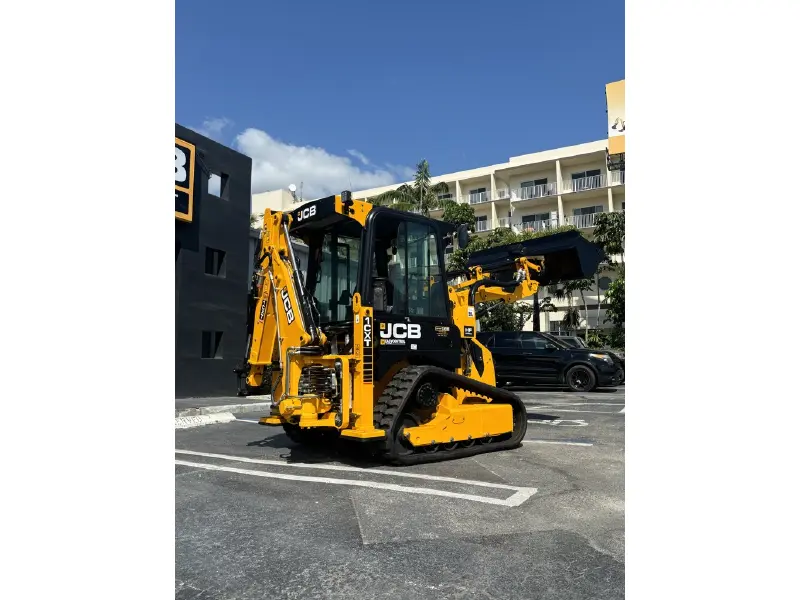

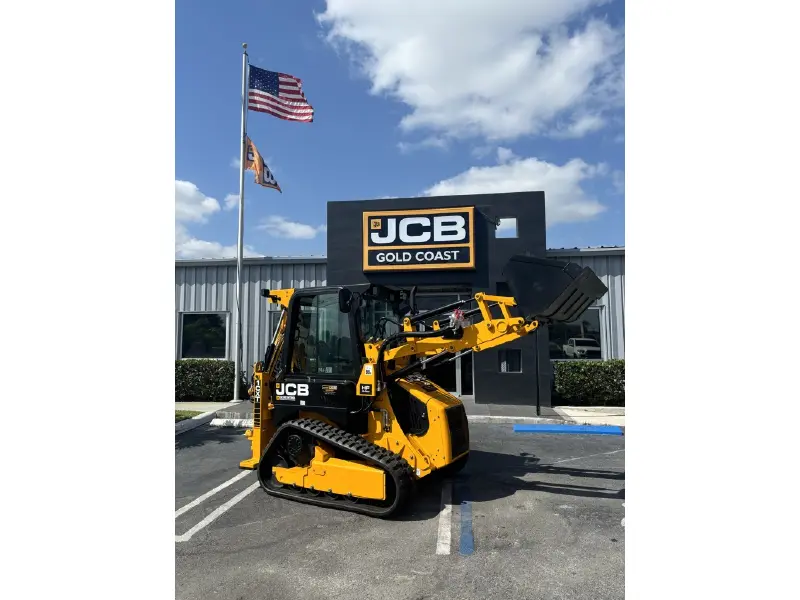

2026 JCB 1CXT

JCB 1CXT

• A/C Cab
• 49 hp (36.3 kW) turbocharged Perkins engine; Tier 4 Final compliant
• Max dig depth: 10 ft 1 in (3.08 m) with extending dipper
• Max loadover height: 8 ft 8 in (2.65 m)
• Loader rated operating capacity: 1,466 lb (665 kg)
• High‑flow hydraulics: 26.4 gpm (100 L/min) standard
• Standard-flow hydraulics: 11.8 gpm (45 L/min)
• Hydraulic system pressure: 3,190 psi (EasyControls)
• Operating weight: 9,396 lb (fixed dipper) / 9,572 lb (extending dipper)
• Universal skid‑steer style quick hitch on loader
• Integrated side‑shift backhoe with 12 ft 10 in (3.91 m) ground‑level reach
• Bucket tear‑out force: 4,852 lbf
• Dipper tear‑out force: 3,280 lbf
• Tracks: 12.6 in (320 mm) with low‑ground‑pressure footprint (8.6 ft²)
• Undercarriage uses four cast steel triple‑flanged rollers for maximum track retention
• Can safely operate on 31° gradients
• Travel speed: 0–4.6 mph (7.5 km/h) forward & reverse (hydrostatic)
• Side‑door entry for safer access
• Cab height under 7 ft 10 in (2.38 m) for basement and tight-area access
• Available options: fully glazed cab with heat & A/C, 6‑in‑1 shovel, extending dipper, hydraulic quick‑hitch, hammer/bi‑directional circuit, street pads, pallet forks, and more
• Easy service access with one‑piece engine cover and ground‑level daily checks
• Fuel tank capacity: 11.9 gal (45 L) with external sight gauge
• Standard reversing alarm; optional beacon, front screen guard, and mirrors
