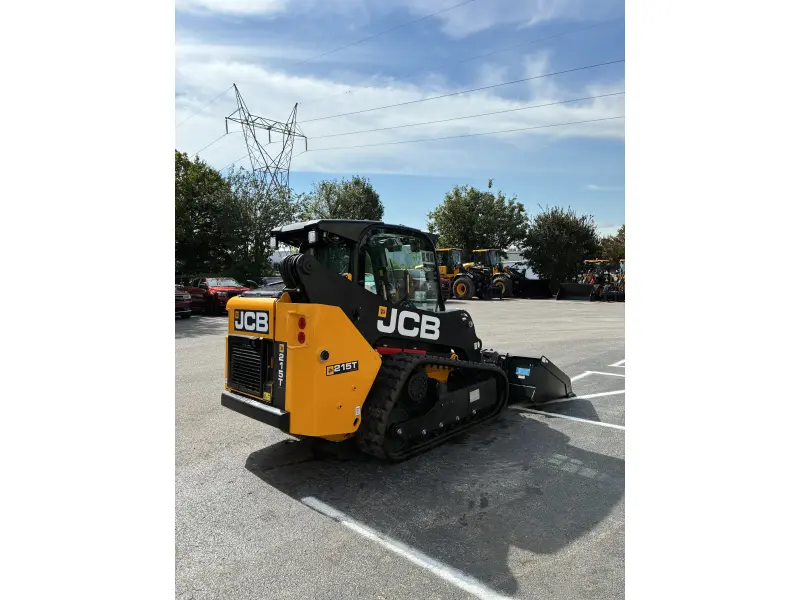

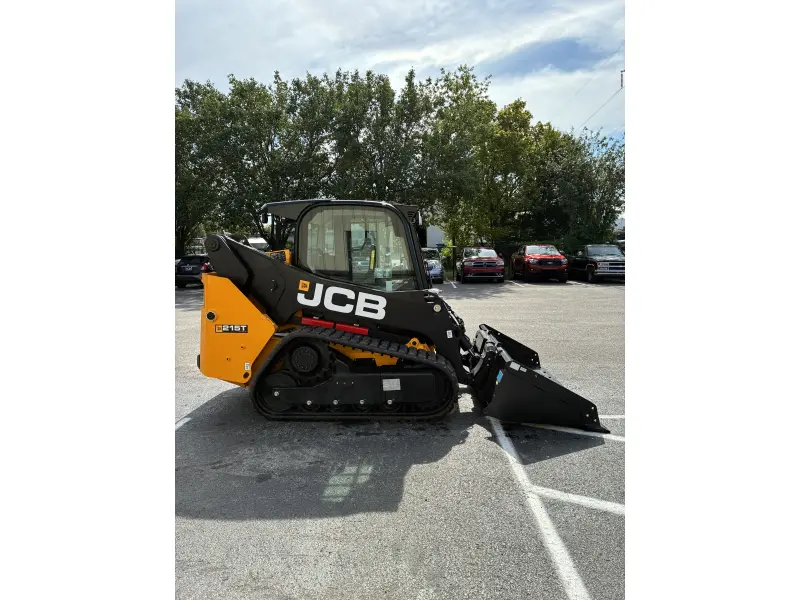

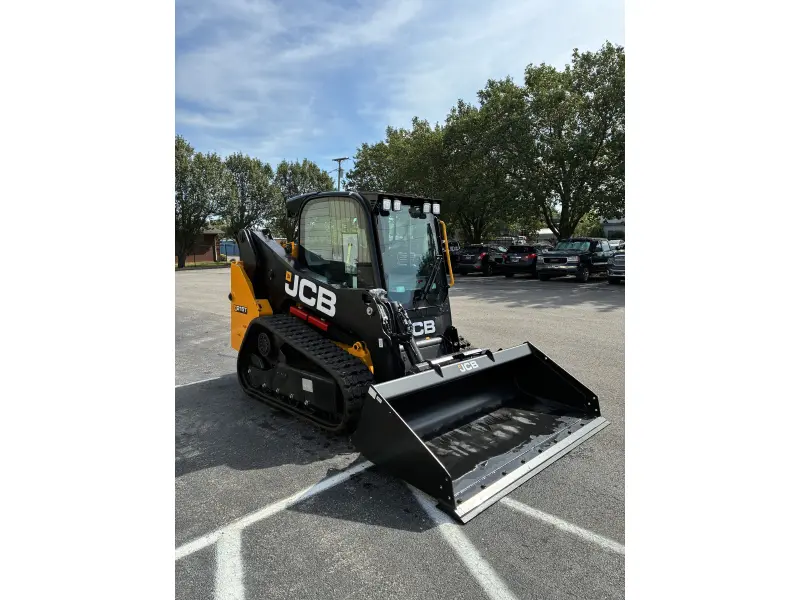

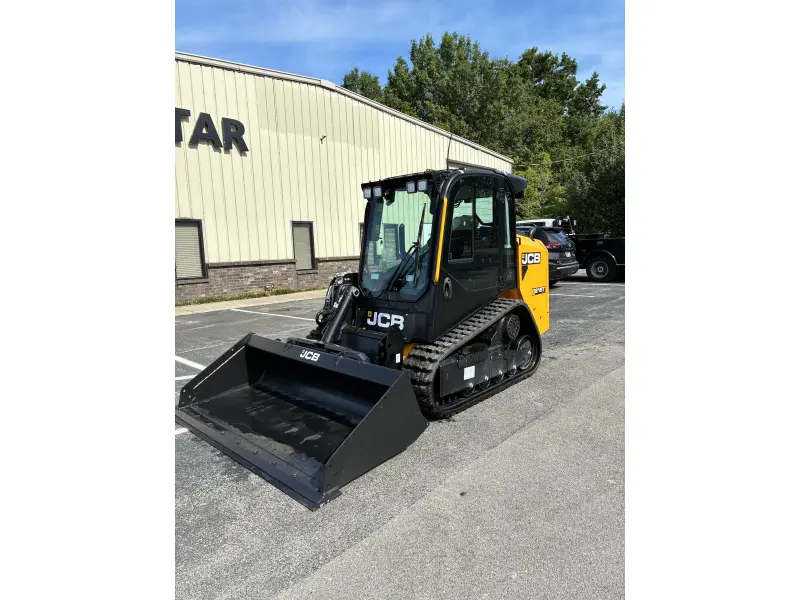

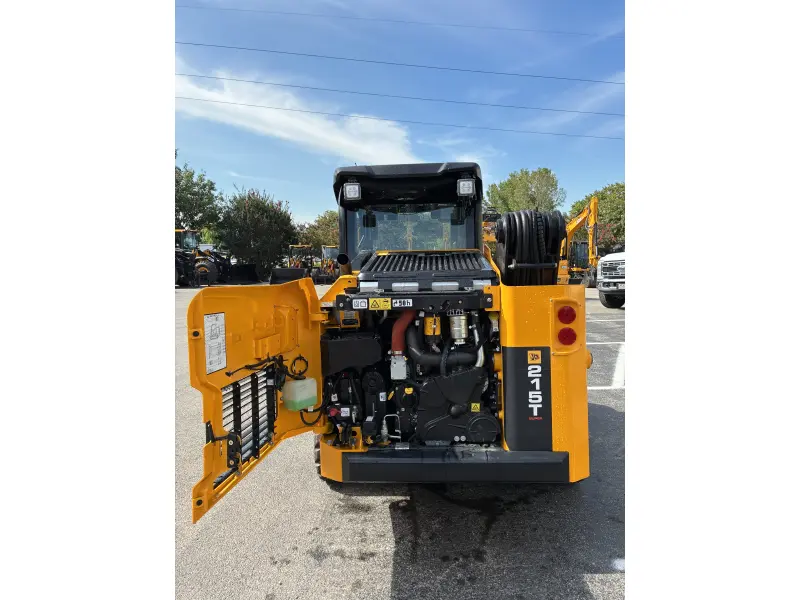

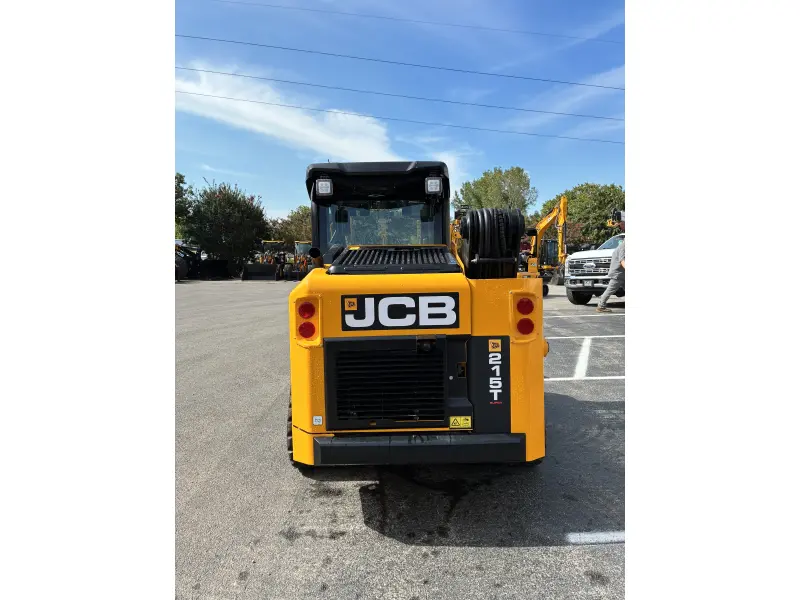

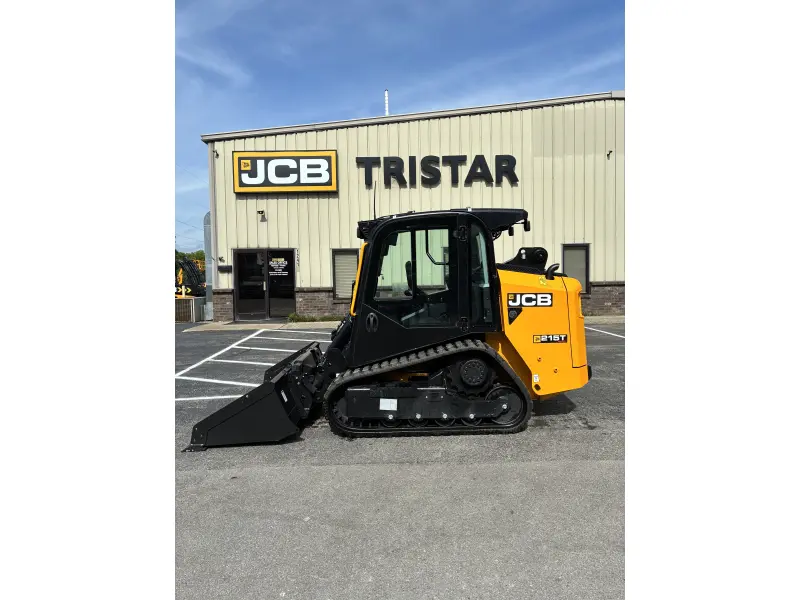

2026 JCB 215T
New
New
New
New
New
New
New
New
New
New
New
New
Quick Inquiry
Key Features and Details
- Stock #001480
- CategorySkid Steers
- ClassEarthmoving
- Hours6
Dealer Comments
2026 JCB 215T, The world's safest Compact Track Loader - flexible, multi-purpose and highly productive. With a rated operating capacity of 2,105 lbs., the JCB 215T vertical lift compact track loader is ideal for lifting and loading at any height while its tracks provide extra stability on uneven ground. Being small but powerful makes it very productive by having the versatility to utilize power-hungry attachments.
Specifications
| Body | Earthmoving |
|---|---|

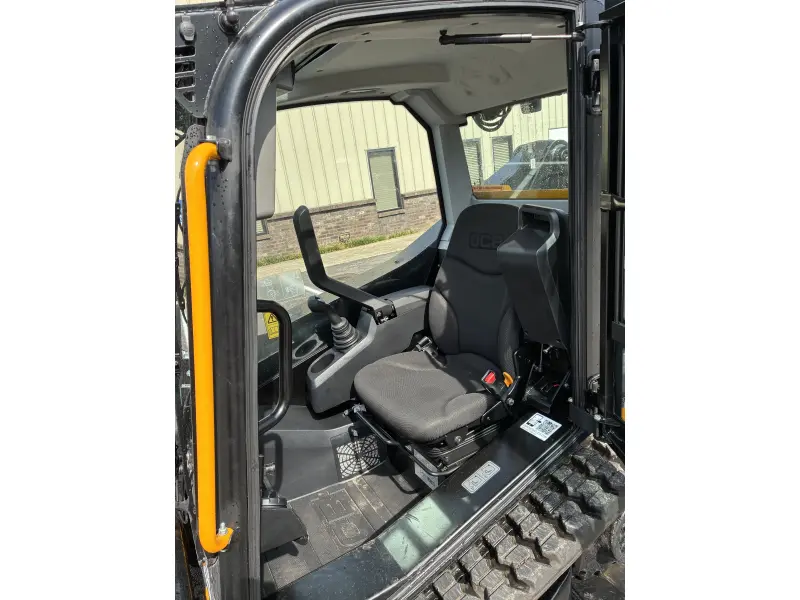

| Cab Type | Swing Up |
| Category | Skid Steers |
| Make | JCB |
| Stock Number | 001480 |
| Veh Type | New |
| Vin | 3676086 |
| Year | 2026 |
| Max Dump Height | 2290 mm [90 in] |
|---|---|
| Lift Height | 2850 mm [112 in] |
| Tipping Load | 2729 kg [6016 lb] |
| Track Shoe Width | 320 mm [12.6 in] |
| Track Length On Ground | 1780 mm [70 in] |
| Track Gauge | 1530 mm [60.3 in] |
| Height To Hinge Pin | 3020 mm [119 in] |
| Max Dump Height Reach | 850 mm [33 in] |
| Turning Radius Rear Corner | 1650 mm [65 in] |
| Turning Radius Bucket Corner | 2090 mm [82 in] |
| Rear Departure Angle | 27° |
| Dump Angle | 42° |
| Ground Level Rollback | 30° |
| System Pressure | 230 bar [3335 psi] |
| Hydraulic Power | 27 kW [36 hp] |
| Hydraulic Power Option | 44 kW [59.1 hp] |
| Pump Flow | 70 L/min [18.5 gal/min] |
| Pump Flow Option | 115 L/min [30.4 gal/min] |
| System Pressure Option | 235 bar [3335 psi] |
| Hydraulic System | 43.5 L [11.5 gal] |
| Undercarriage Type | Hi Mount Drive Motor |
| Lift Geometry | Vertical |
| Structure | ROPS / FOPS |
| Steering Type | Track |
| Track Rollers | 4 |
| Track Type | Rubber |
| Heaped Capacity | 0.36 m³ [13 ft³] |
| Operating Capacity | 955.15 kg [2106 lb] |
| Ground Bearing Pressure | 33.1 kPa [4.8 psi] |
| Breakout Lift | 20 kN [4592 lbf] |
| Breakout Bucket | 22 kN [4945 lbf] |

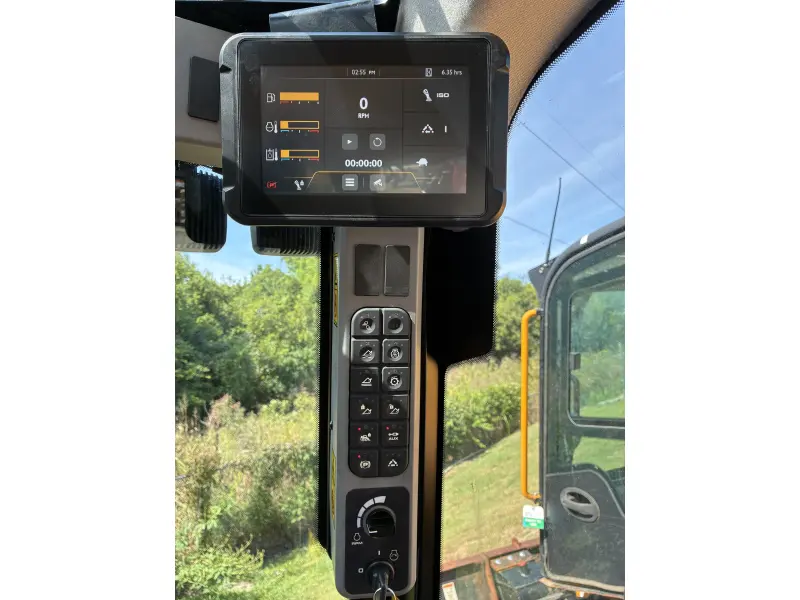

| Controls Loader | Joystick |
| Controls Steering | Joystick |
| Self Levelling | Hydraulic [Opt] |
| Engine Hours | 6 |
|---|---|
| Fuel Tank | 92 L [24.3 gal] |
| Emissions | Diesel T4 SIIB |
| Engine Oil | 7.4 L [2 gal] |
| Cooling System | 10 L [2.6 gal] |
| Motors | 2 |
| Transmission Type | Hydrostatic |
|---|---|
| Drive Method | Sprocket |
| Operating Weight | 5120 kg [11287 lb] |
|---|---|
| Ground Clearance | 230 mm [9 in] |
| Width With Bucket | 1680 mm [66 in] |
| Height Top Of Cab | 2000 mm [79 in] |
| Length With Bucket | 3490 mm [137 in] |
| Width No Bucket | 1680 mm [66 in] |
| Speed Maximum | 10 km/h [6.2 mph] |
|---|
Please confirm all features with dealer.
