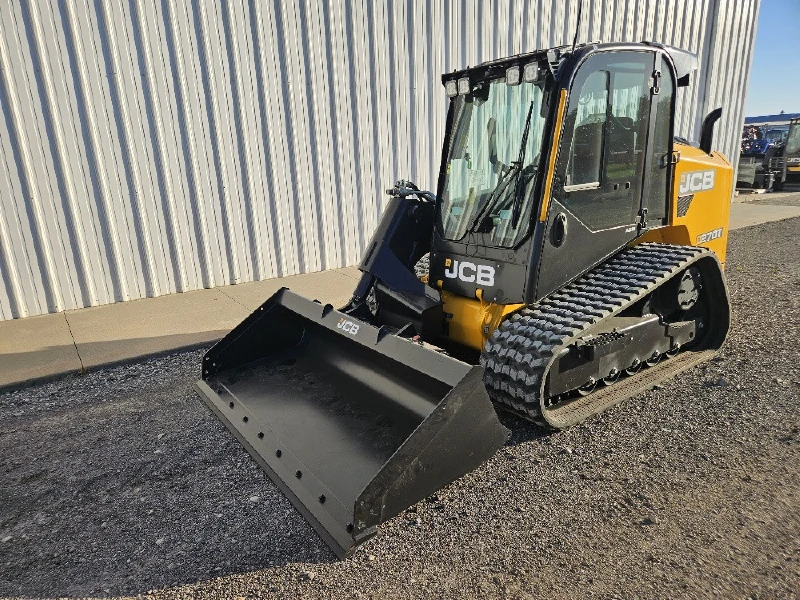

2026 JCB 270T
New
New
New
New
New
New
New
New
New
Quick Inquiry
Key Features and Details
- Stock #217610
- CategorySkid Steers
- ClassEarthmoving
- Hours—
Dealer Comments

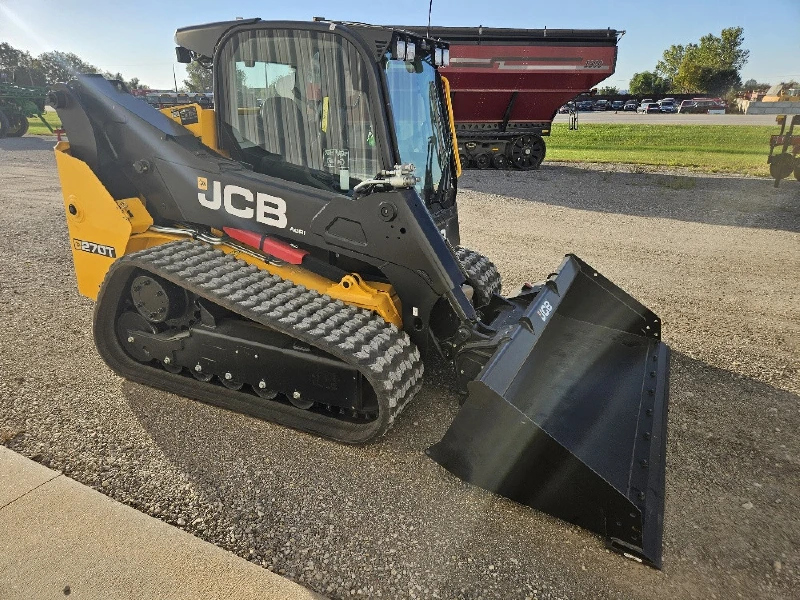

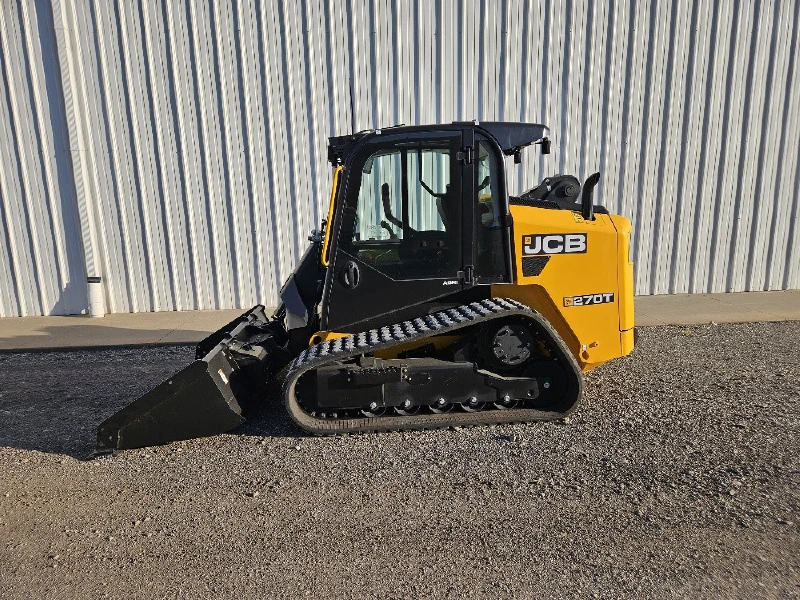

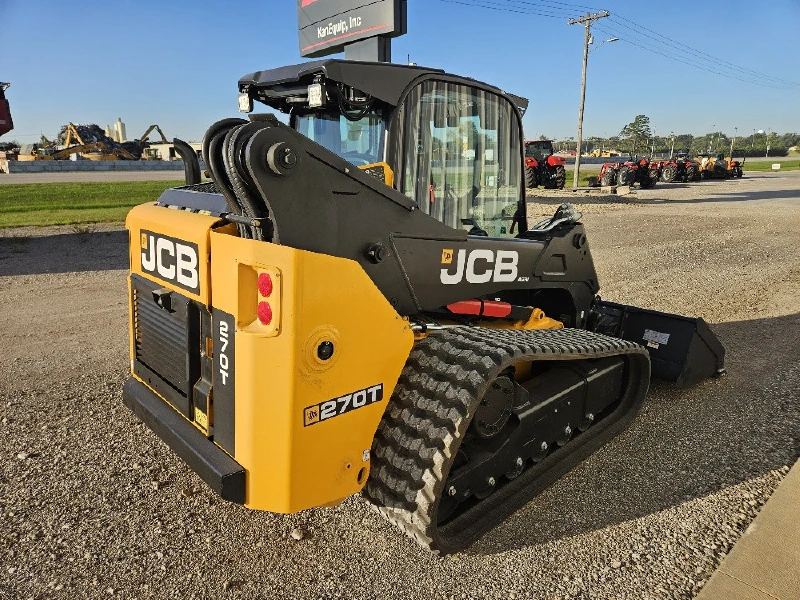

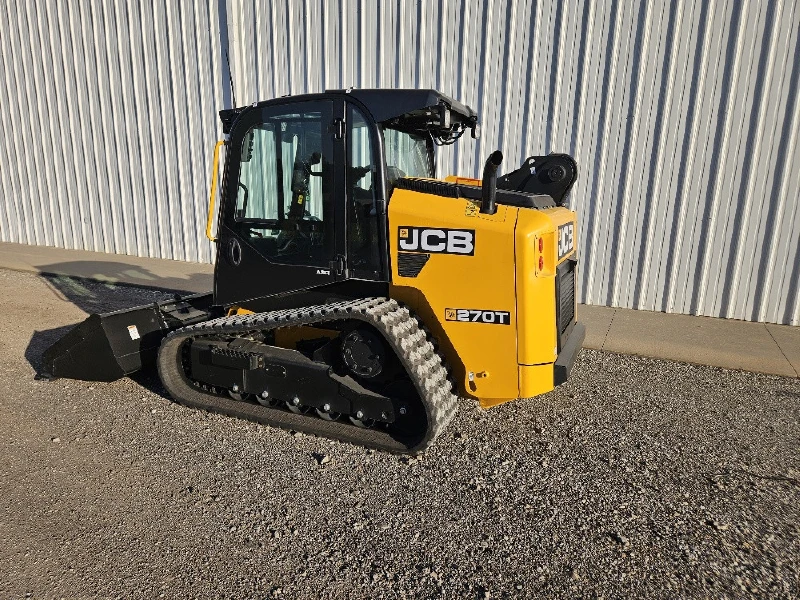

2026 JCB 270T, The world's safest Compact Track Loader - flexible, multi-purpose and highly productive. The JCB 270T is a large platform machine equipped with the Hi-Viz Powerboom TM which provides greater visibility to the attachments. With a rated operating capacity of 2,723 lbs., this powerful vertical lift, compact track loader is ideal for demolition, breaker work, and using rock saws. It has a low center of gravity to provide better stability when loading on an incline.
Specifications
| Body | Earthmoving |
|---|---|

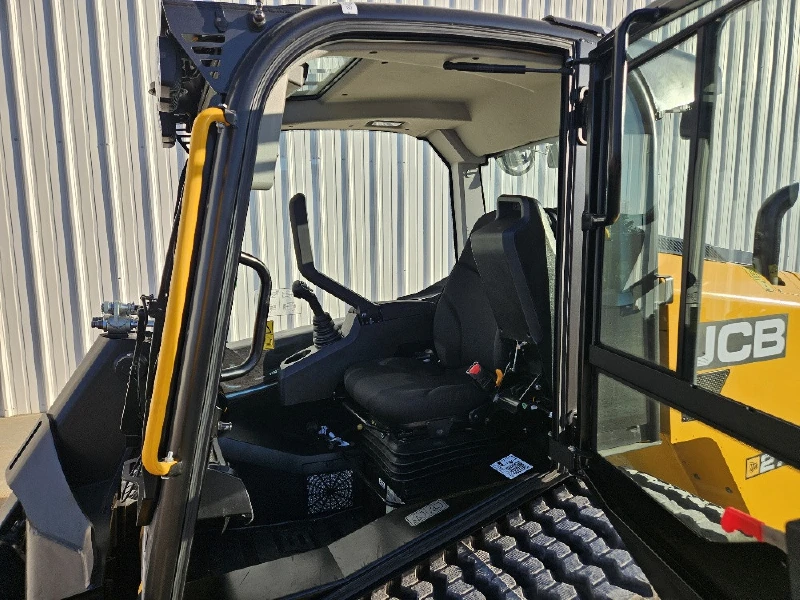

| Cab Type | Swing Up |
| Category | Skid Steers |
| Make | JCB |

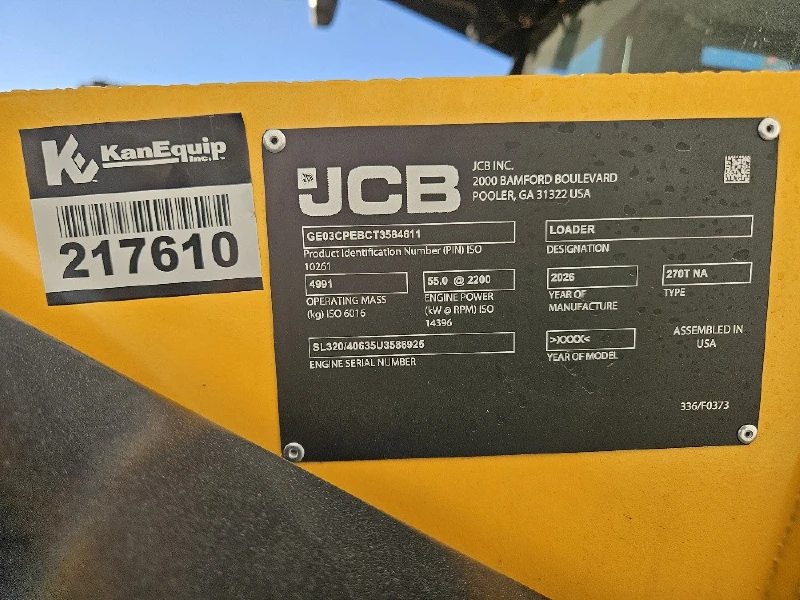

| Stock Number | 217610 |
| Veh Type | New |
| Vin | 3584611 |
| Year | 2026 |
| Max Dump Height | 2280 mm [89 in] |
|---|---|
| Lift Height | 2880 mm [113 in] |
| Tipping Load | 3624 kg [7990 lb] |
| Track Shoe Width | 400 mm [15.7 in] |
| Track Length On Ground | 2100 mm [83 in] |
| Track Gauge | 1530 mm [60.3 in] |
| Height To Hinge Pin | 3180 mm [125 in] |
| Max Dump Height Reach | 900 mm [35 in] |
| Turning Radius Rear Corner | 1760 mm [69.5 in] |
| Turning Radius Bucket Corner | 2300 mm [91 in] |
| Rear Departure Angle | 29° |
| Dump Angle | 42° |
| Ground Level Rollback | 30° |
| System Pressure | 230 bar [3335 psi] |
| Hydraulic Power | 35 kW [46.7 hp] |
| Hydraulic Power Option | 46 kW [61.7 hp] |
| Pump Flow | 90 L/min [24 gal/min] |
| Pump Flow Option | 120 L/min [31.7 gal/min] |
| System Pressure Option | 235 bar [3335 psi] |
| Hydraulic System | 55 L [14.5 gal] |
| Undercarriage Type | Hi Mount Drive Motor |
| Lift Geometry | Vertical |
| Structure | ROPS / FOPS |
| Steering Type | Track |
| Track Rollers | 5 |
| Track Type | Rubber |
| Heaped Capacity | 0.43 m³ [15 ft³] |
| Operating Capacity | 1268.4 kg [2796 lb] |
| Ground Bearing Pressure | 33.1 kPa [4.8 psi] |
| Breakout Lift | 26 kN [5807 lbf] |
| Breakout Bucket | 29 kN [6543 lbf] |
| Controls Loader | Joystick |
| Controls Steering | Joystick |
| Self Levelling | Hydraulic [Opt] |
| Fuel Tank | 103.3 L [27.3 gal] |
|---|---|
| Emissions | Diesel T4 SIIB |
| Engine Oil | 15 L [4 gal] |
| Cooling System | 22 L [5.8 gal] |
| Motors | 2 |
| Transmission Type | Hydrostatic |
|---|---|
| Drive Method | Sprocket |
| Operating Weight | 5120 kg [11287 lb] |
|---|---|
| Ground Clearance | 230 mm [9 in] |
| Width With Bucket | 1900 mm [75 in] |
| Height Top Of Cab | 2080 mm [82 in] |
| Length With Bucket | 3800 mm [150 in] |
| Width No Bucket | 1900 mm [75 in] |
| Torque | 400 Nm [295 lbf·ft] |
|---|---|
| Gross Output | 55 kW [74 hp] |
| Speed Maximum | 9.2 km/h [5.7 mph] |
| Torque Rated Speed | 1200 rpm |
Please confirm all features with dealer.
