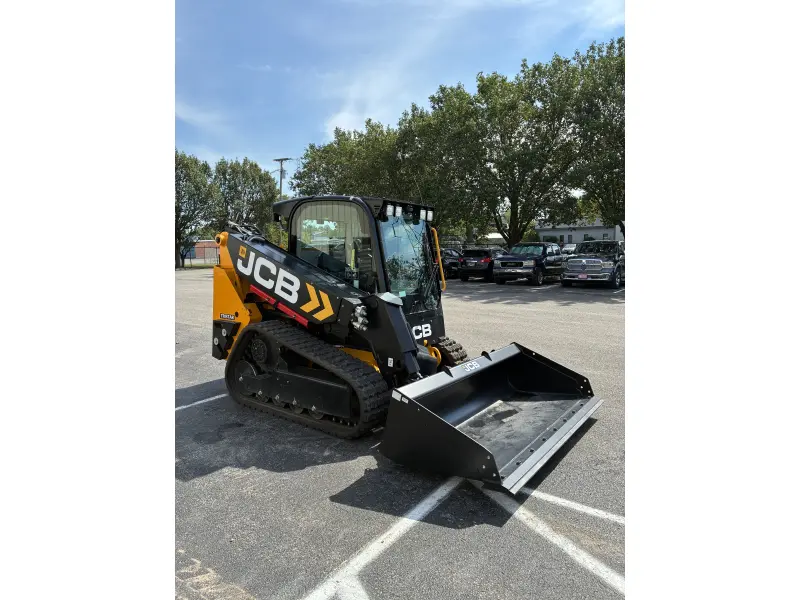

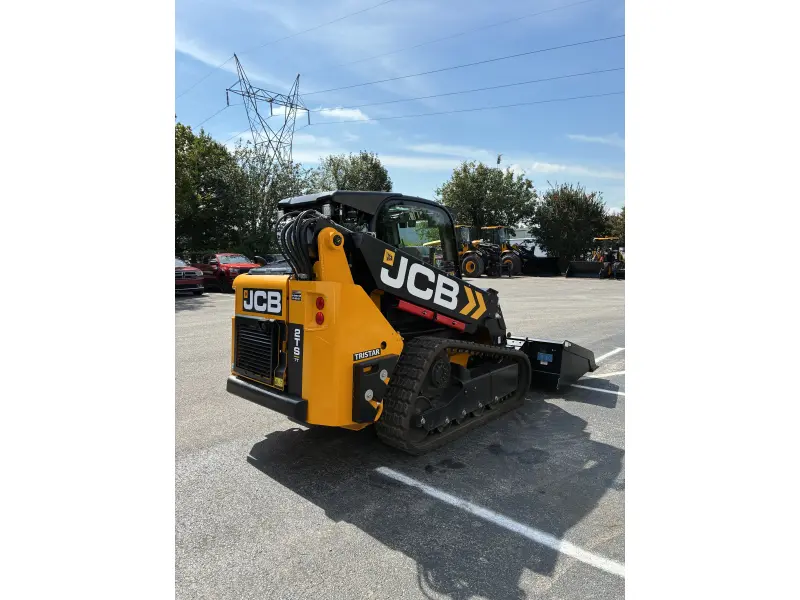

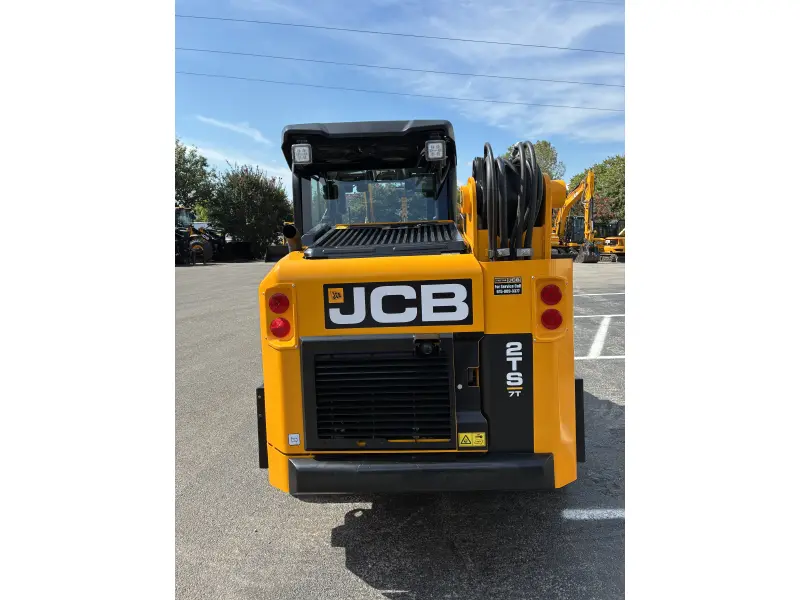

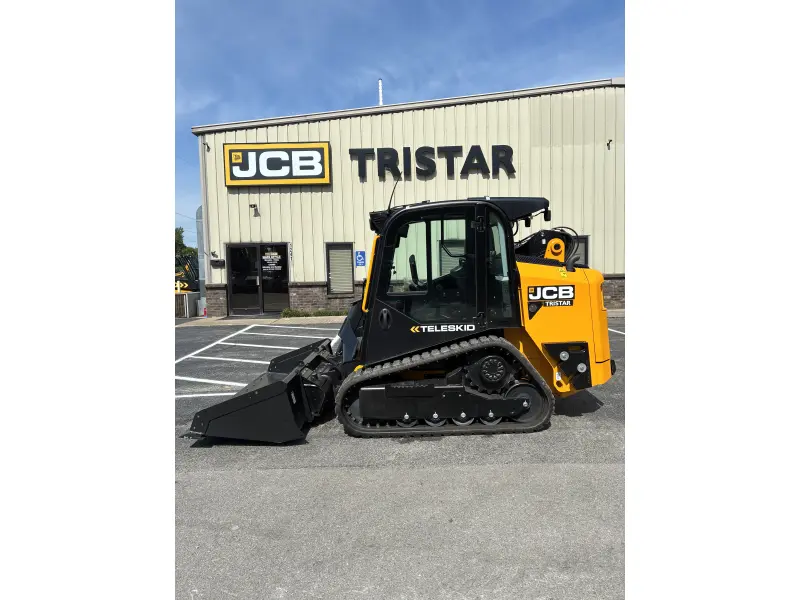

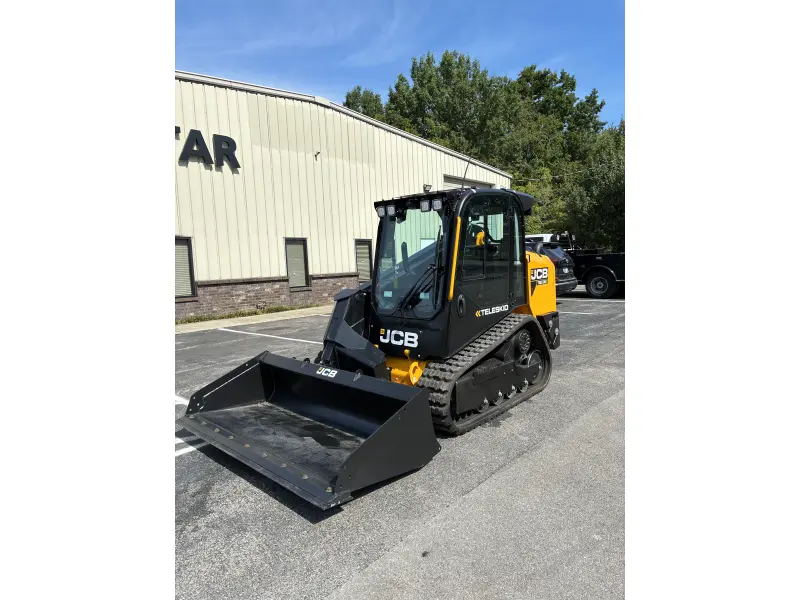

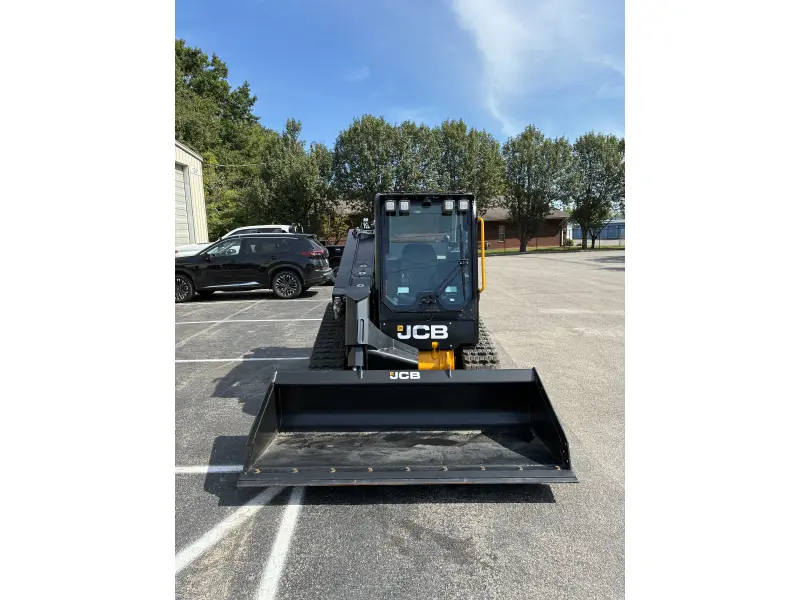

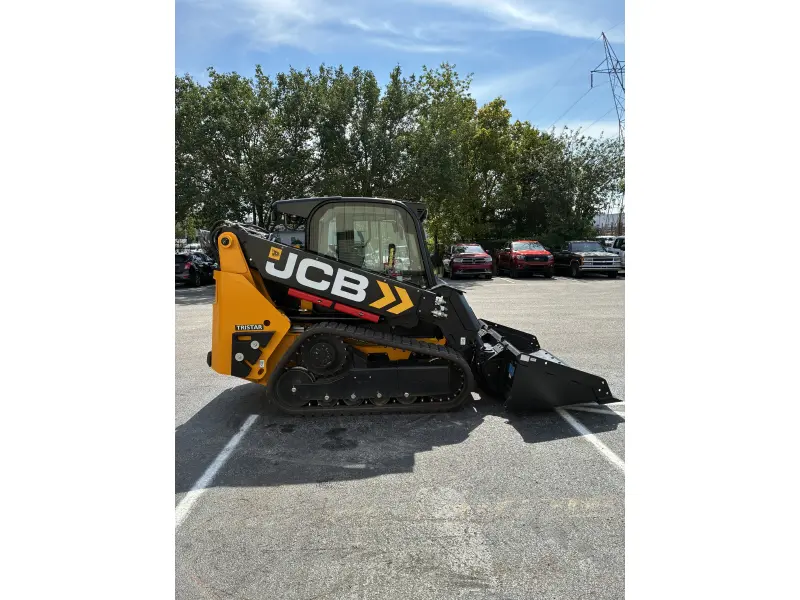

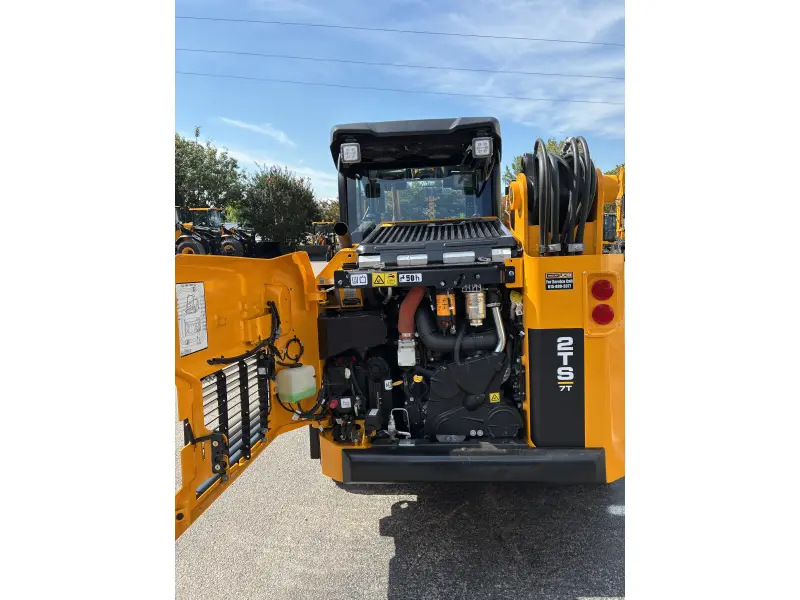

2026 JCB 2TS-7T
Quick Inquiry
Key Features and Details
- Stock #001396
- CategorySkid Steers
- ClassEarthmoving
- Hours17
Dealer Comments

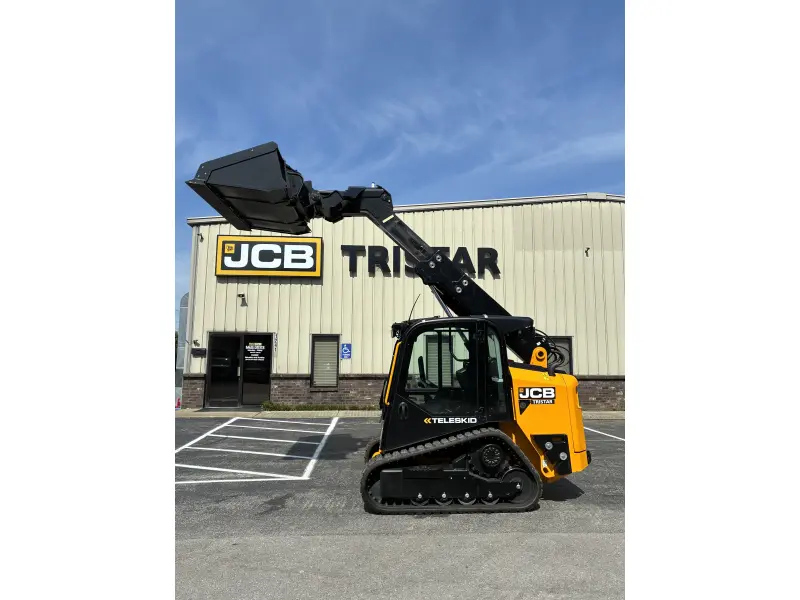

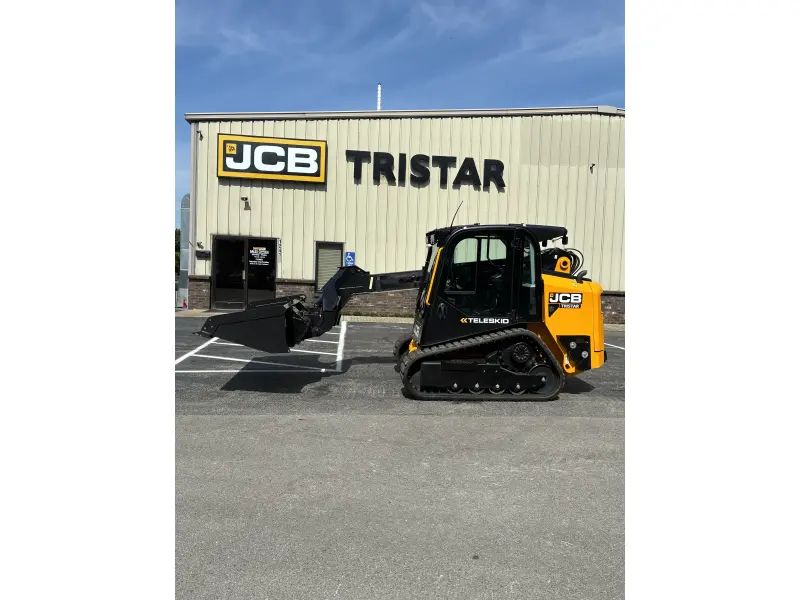

2026 JCB 2TS-7T, The 2TS-7T is the worlds first and only small-platform compact track loader with a telescoping boom. This boom allows the operator to lift higher, reach further and dig deeper than any competing machine. The telescopic boom allows the 2TS-7T to achieve its 11 feet 10 inches of lift height. This substantial height provides the operator the opportunity to dump material and stack pallets or bales higher than ever before freeing up valuable ground space. With a full 7 feet of forward reach, 60% more forward reach than conventional compact track loaders, operators now can load both sides of a flatbed trailer from one side. This large reach helps reach over fences and other obstacles to place loads.
Specifications
| Body | Earthmoving |
|---|---|

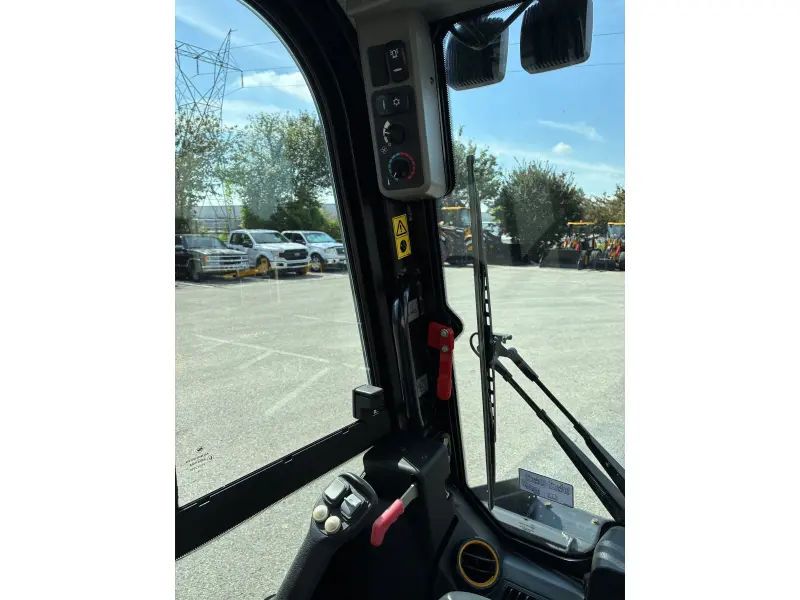

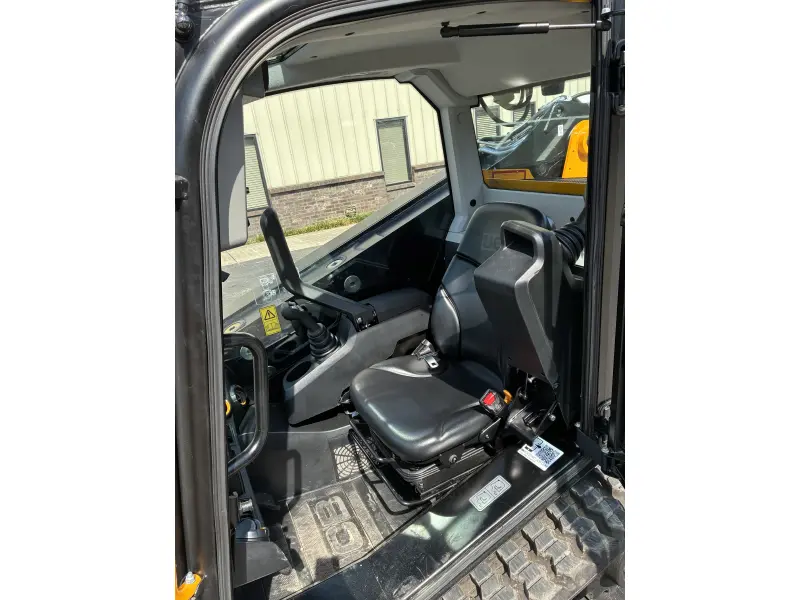

| Cab Type | Swing Up - Meshed |
| Category | Skid Steers |
| Make | JCB |
| Stock Number | 001396 |
| Veh Type | New |

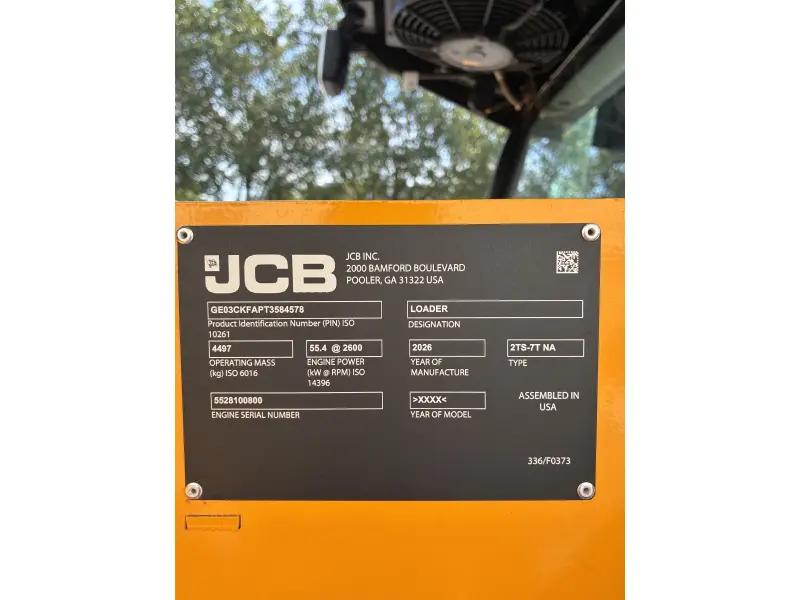

| Vin | 3584578 |
| Year | 2026 |
| Max Dump Height | 2300 mm [90 in] |
|---|---|
| Lift Height | 2800 mm [112 in] |
| Tipping Load | 2784 kg [6138 lb] |
| Track Shoe Width | 320 mm [12.6 in] |
| Track Length On Ground | 1900 mm [75 in] |
| Track Gauge | 1550 mm [59.3 in] |
| Height To Hinge Pin | 3100 mm [122 in] |
| Max Dump Height Reach | 620 mm [24 in] |
| Turning Radius Rear Corner | 1600 mm [64 in] |
| Turning Radius Bucket Corner | 2200 mm [88 in] |
| Rear Departure Angle | 28° |
| Dump Angle | 36° |
| Ground Level Rollback | 31° |
| System Pressure | 230 bar [3335 psi] |
| Hydraulic Power | 18.7 kW [25 hp] |
| Hydraulic Power Option | 24.7 kW [33 hp] |
| Pump Flow | 70 L/min [18.6 gal/min] |
| Pump Flow Option | 110 L/min [29.4 gal/min] |
| System Pressure Option | 230 bar [3335 psi] |
| Hydraulic System | 48 L [12.6 gal] |
| Undercarriage Type | Hi Mount Drive Motor |
| Lift Geometry | Vertical & Radial |
| Structure | ROPS / FOPS |
| Steering Type | Track |
| Track Rollers | 4 |
| Track Type | Rubber |
| Heaped Capacity | 0.56 m³ [20 ft³] |
| Operating Capacity | 951 kg [2096 lb] |
| Breakout Lift | 18.36 kN [4127 lbf] |
| Breakout Bucket | 28.93 kN [6503 lbf] |

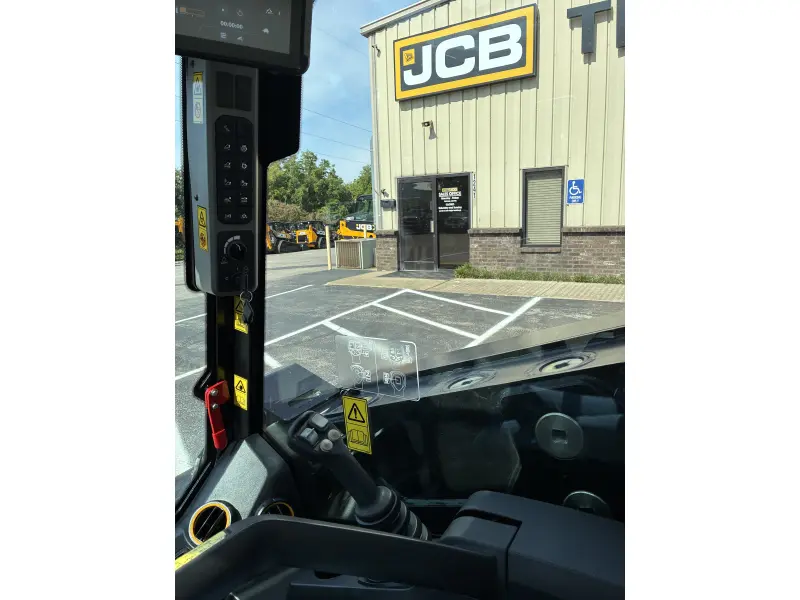

| Controls Loader | Joystick |
| Controls Steering | Joystick |
| Engine Hours | 17 |
|---|---|
| Fuel Tank | 98 L [25.9 gal] |
| Emissions | Diesel T4 SIIB |
| Engine Oil | 11.5 L [3 gal] |
| Cooling System | 10.3 L [2.7 gal] |
| Motors | 2 |
| Transmission Type | Hydrostatic |
|---|---|
| Drive Method | Sprocket |
| Operating Weight | 4497 kg [9914 lb] |
|---|---|
| Ground Clearance | 230 mm [9 in] |
| Width With Bucket | 1800 mm [71 in] |
| Height Top Of Cab | 2000 mm [79 in] |
| Length With Bucket | 3600 mm [142 in] |
| Width No Bucket | 1600 mm [63 in] |
| Length No Bucket | 2800 mm [110 in] |
| Torque | 265 Nm [195 lbf·ft] |
|---|---|
| Gross Output | 55 kW [74 hp] |
| Speed Maximum | 7.2 km/h [4.5 mph] |
| Torque Rated Speed | 1200 rpm |
Please confirm all features with dealer.
