2026 JCB 35Z-1
New
New
New
New
New
New
New
New
New
New
New
New
New
New
Quick Inquiry
Key Features and Details
- Stock #001424
- CategoryExcavators
- ClassEarthmoving
- Hours6
Dealer Comments

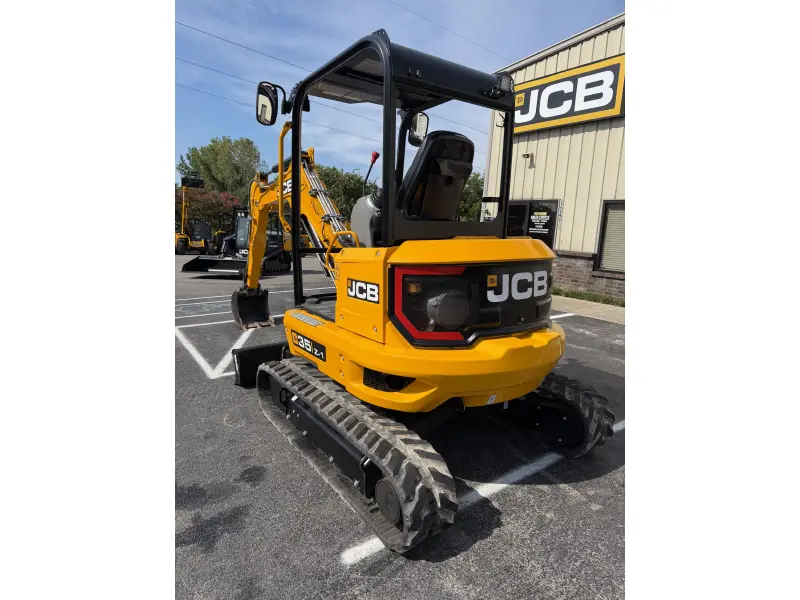

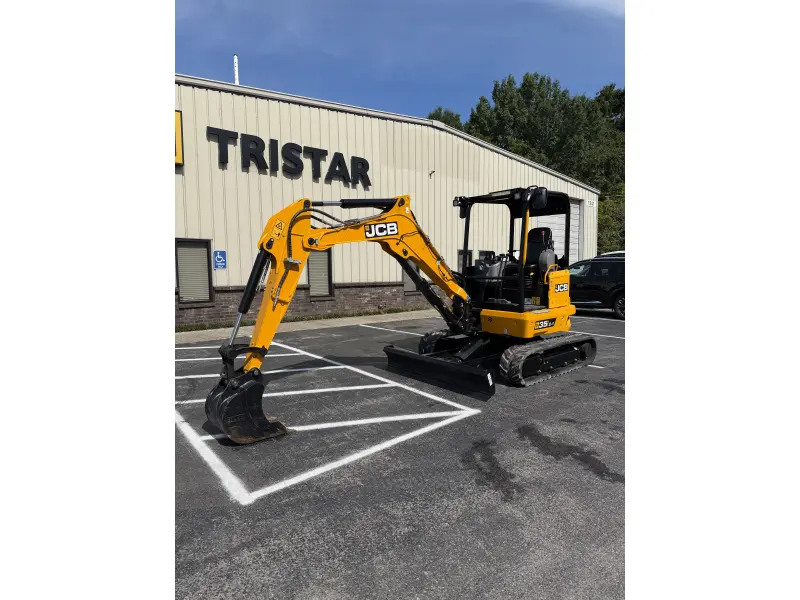

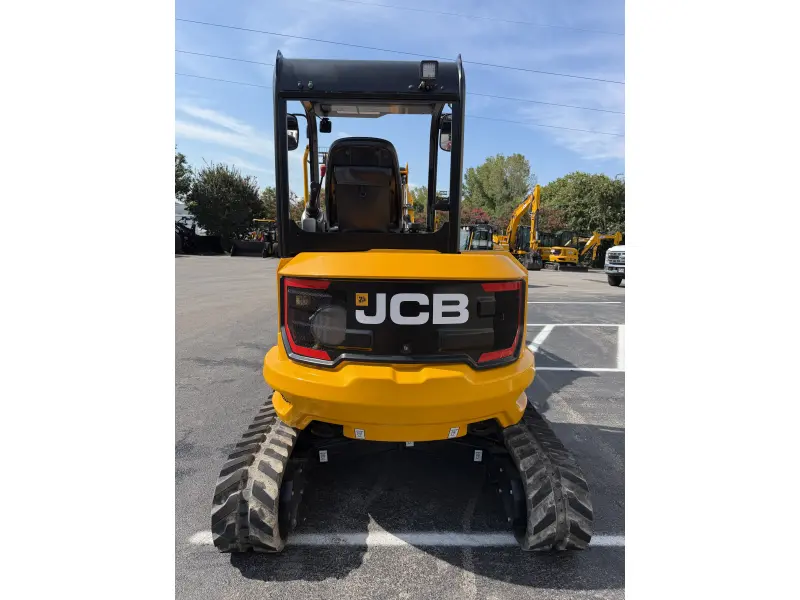

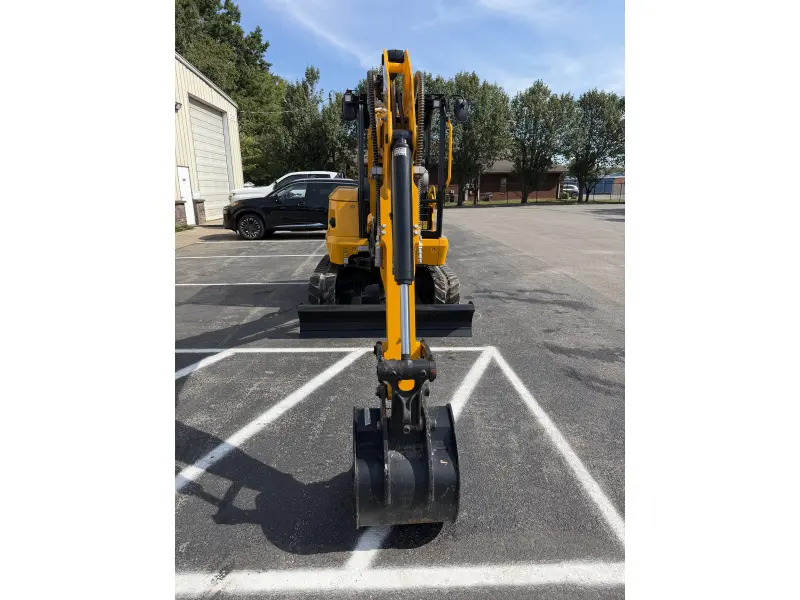

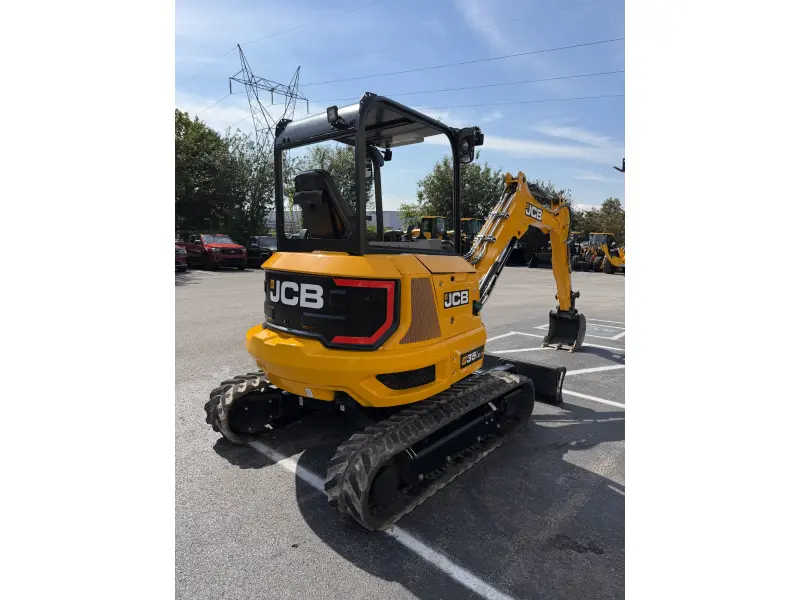

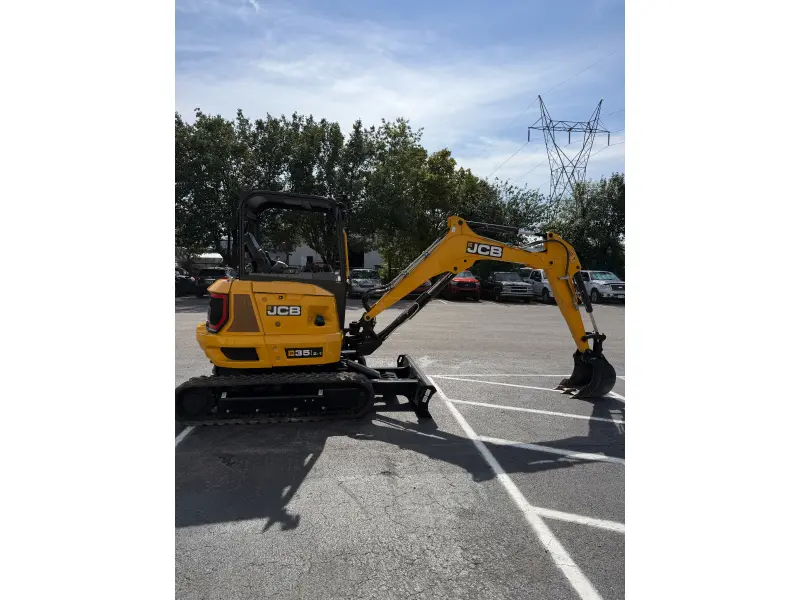

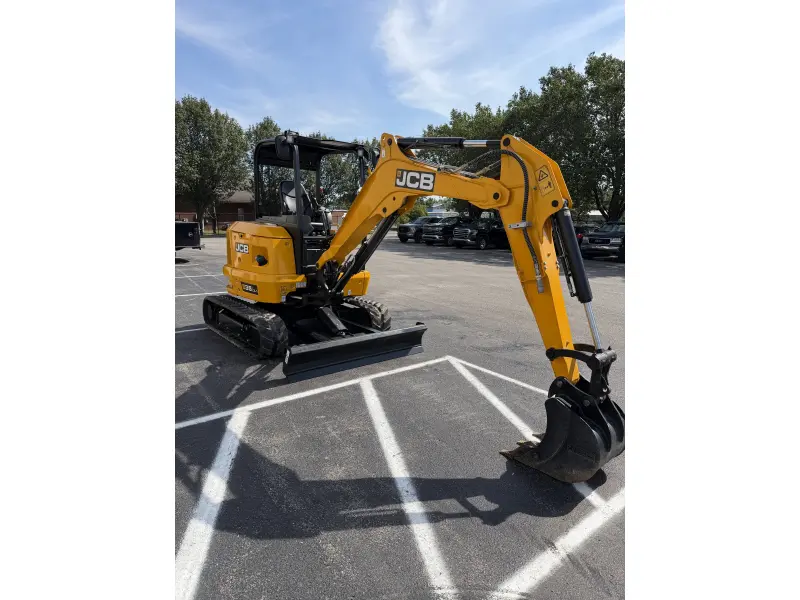

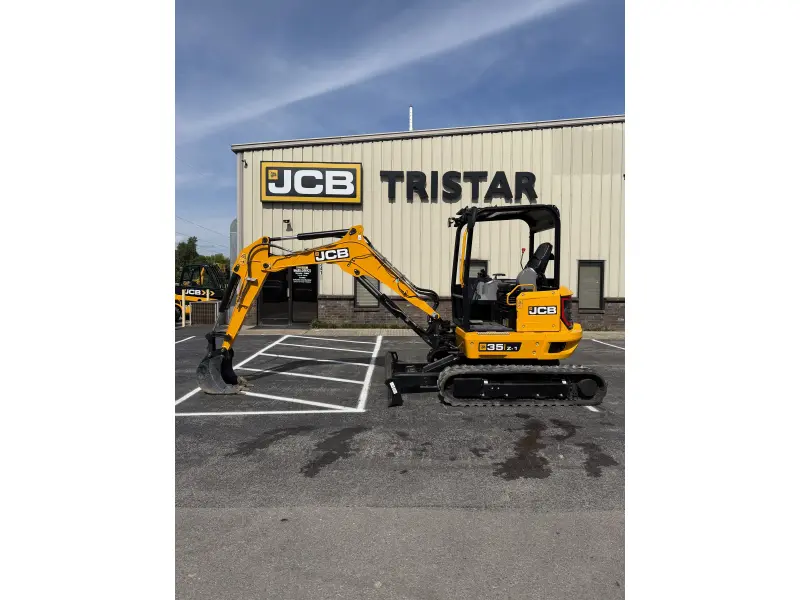

2026 JCB 35Z-1, Introducing the 35Z-1 zero tailswing mini excavator. The New Generation 3.5T compact excavators. The 35Z-1 is one of the T4F machines with no need for electronic control, aftertreatment or EGR. It has zero tailswing for easy and safe manoeuvrability, especially in confined spaces and 100% steel bodywork.
Specifications
| Body | Earthmoving |
|---|---|
| Category | Excavators |
| Make | JCB |
| Stock Number | 001424 |
| Veh Type | New |

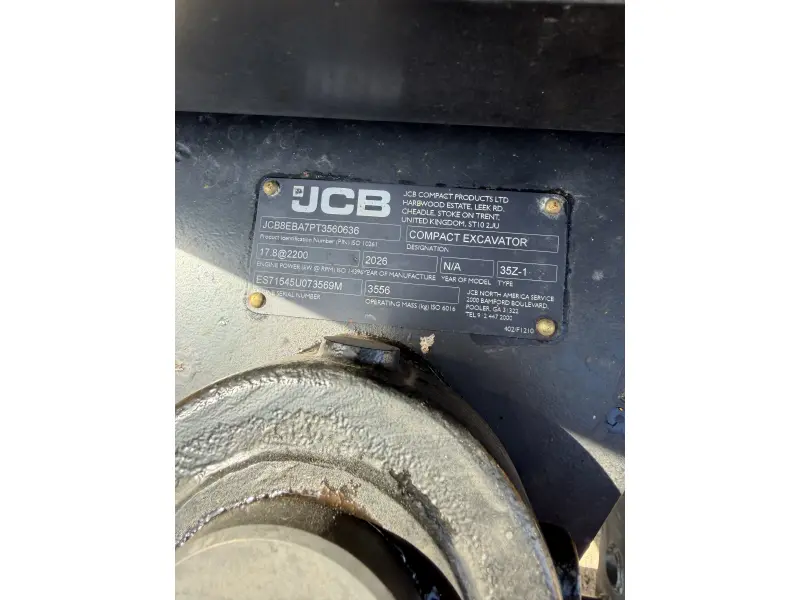

| Vin | 3560636 |
| Year | 2026 |
| Boom Swing Left | 75° |
|---|---|
| Boom Swing Right | 55° |
| Dig Depth | 3194 mm [10 ft 6 in] |
| Track Length On Ground | 1590 mm [5 ft 3 in] |
| Track Gauge | 1400 mm [4 ft 7 in] |
| Hydraulic System | 47.5 L [12.55 gal (US)] |
| Boom Size | 2.45 m [8 ft] |
| Min Arm Length | 1300 mm [4 ft 3 in] |
| Standard Arm Length | 1300 mm [4 ft 3 in] |
| Max Arm Length | 1600 mm [5 ft 3 in] |
| Main Pump Total | 76 L/min [20.08 gal (US)/min] |
| Boom Pressure | 250 bar [3626 psi] |
| Arm Pressure | 250 bar [3626 psi] |
| Attachment Pressure | 250 bar [3626 psi] |
| Number Of Boom Options | 1 |
| Number Of Mono Booms | 1 |
| Number Of Arm Options | 2 |
| Carrier Rollers Per Side | 1 |
| Track Rollers Per Side | 4 |
| Shoe Width | 300 mm [12 in] |
| Shoe Type | Rubber |
| Hydraulic Tank | 20.3 L [5.36 gal (US)] |
| Arm Tearout | 22.5 kN [5058 lbf] |
| Bucket Breakout | 32.4 kN [7284 lbf] |
| Lift Rating Standard | ISO 10567 |
| Dozer Type | Straight |
| Dozer Dig Depth | 416 mm [16 in] |
| Digging Reach | 5165 mm [16 ft 11 in] |
| Ground Level Reach | 5035 mm [16 ft 6 in] |
| Dig Height | 4571 mm [15 ft] |
| Vertical Wall | 1610 mm [5 ft 3 in] |
| Cylinders | 3 |
|---|---|
| Engine Hours | 6 |

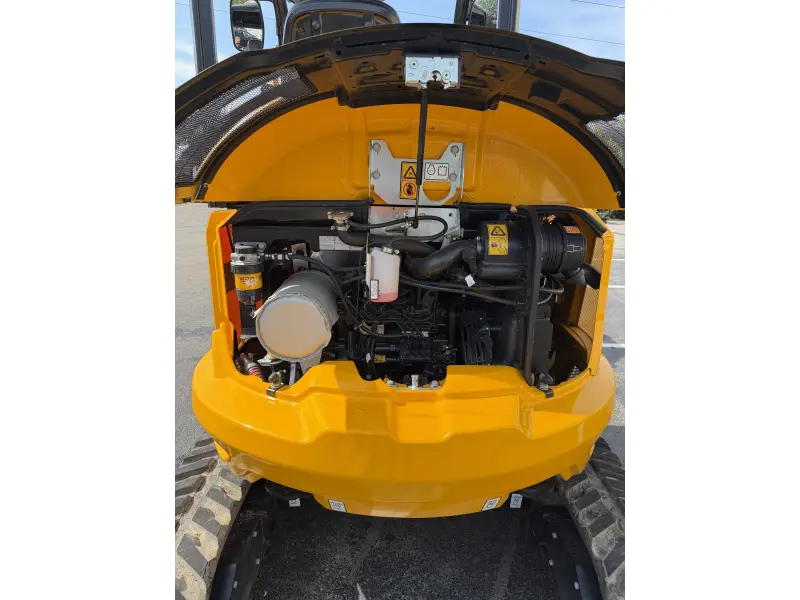

| Engine Manufacturer | Perkins |
| Engine Model | 403J-17 |
| Displacement | 1.66 L [101.4 in³] |
| Fuel Tank | 50 L [13.2 gal (US)] |
| Cooling | Water |
| Emissions | Diesel T4 |
| Engine Oil | 5.2 L [1.37 gal (US)] |
| Cooling System | 7 L [1.85 gal (US)] |
| Rated Speed | 2200 rpm |
| Max Height | 2482 mm [8 ft 2 in] |
|---|---|
| Operating Weight | 3556 kg [7840 lb] |
| Ground Clearance | 275 mm [11 in] |
| Undercarriage Length | 2048 mm [7 ft] |
| Tailswing Radius | 900 mm [2 ft 11 in] |
| Tail Length | 900 mm [2 ft 11 in] |
| Width Over Tracks | 1750 mm [5 ft 9 in] |
| Front Slew Radius | 1891 mm [6 ft 2 in] |
| Transport Weight Mono Boom | 3556 kg [7840 lb] |
| Length Mono Boom | 4851 mm [15 ft 11 in] |
| Height Without Boom | 2482 mm [8 ft 2 in] |
| Width Superstructure | 1550 mm [5 ft 1 in] |
| Width Undercarriage | 1750 mm [5 ft 9 in] |
| Cab Height | 2482 mm [8 ft 2 in] |
| Counterweight Clearance | 563 mm [1 ft 10 in] |
| Dozer Height | 357 mm [14 in] |
| Dozer Width | 1750 mm [5 ft 9 in] |
| Dozer Raised Height | 436 mm [17 in] |
| Dump Height Mono Boom | 3378 mm [11 ft 1 in] |
| Travel Speed High | 4.5 kph [2.8 mph] |
|---|---|
| Travel Speed Low | 2.8 kph [1.74 mph] |
| Torque | 91.9 Nm [67.8 lb/ft] |
| Gross Output | 18.4 kW [24.7 hp] |
| Torque Rated Speed | 1600 rpm |
| Gradeability | 35° |
| Slew Speed | 8.3 rpm |
| Tractive Force | 25.6 kN [5755 lbf] |
Please confirm all features with dealer.
