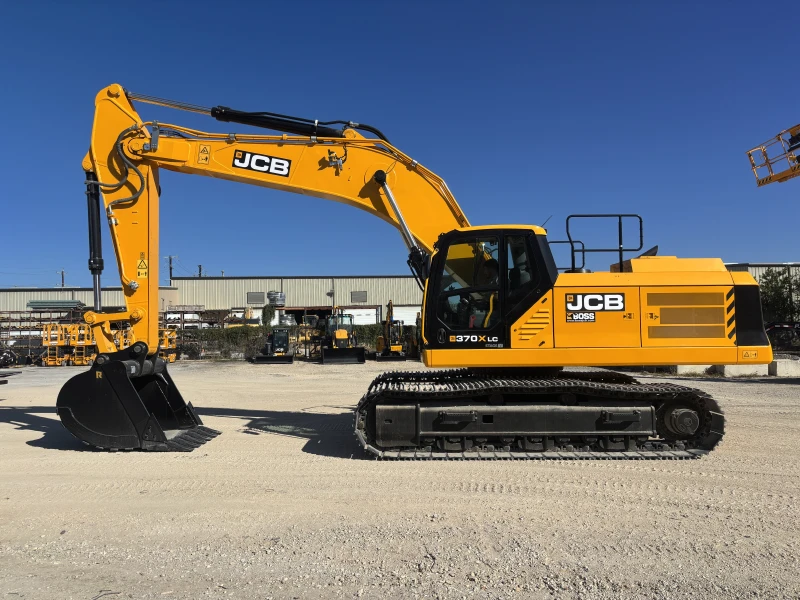

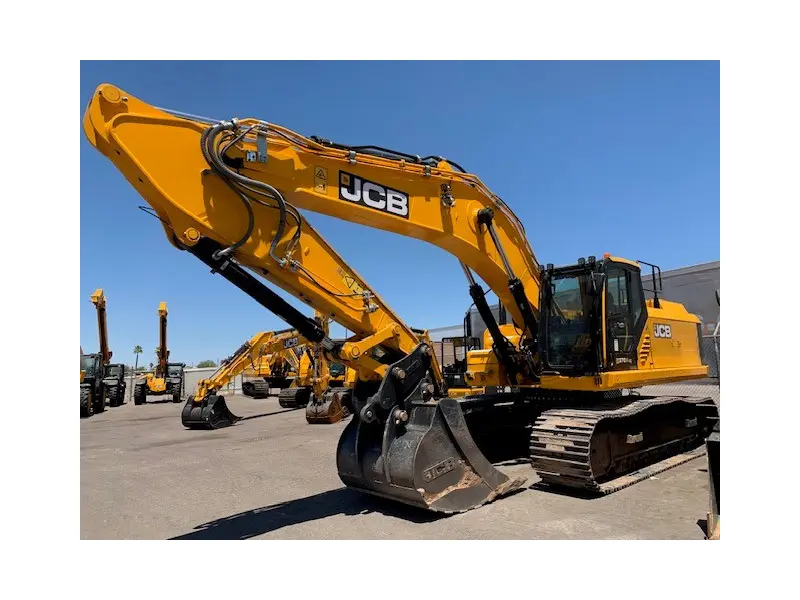

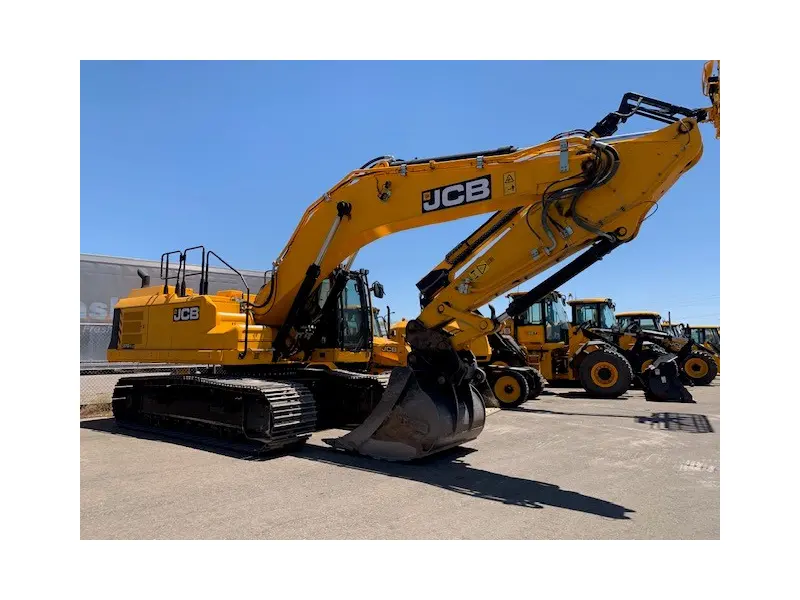

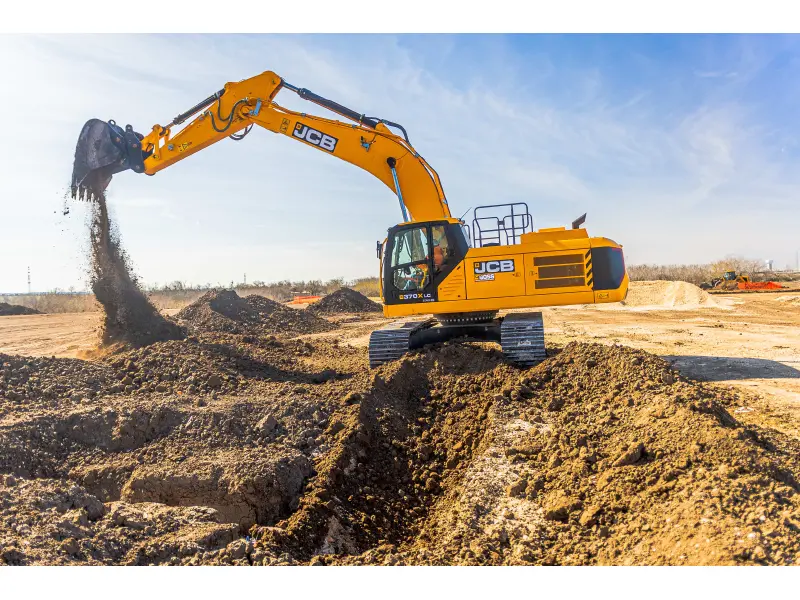

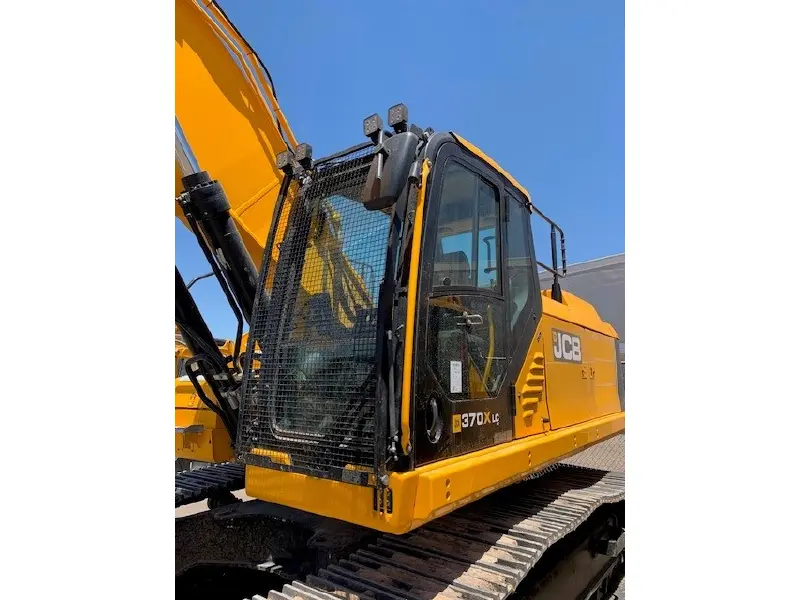

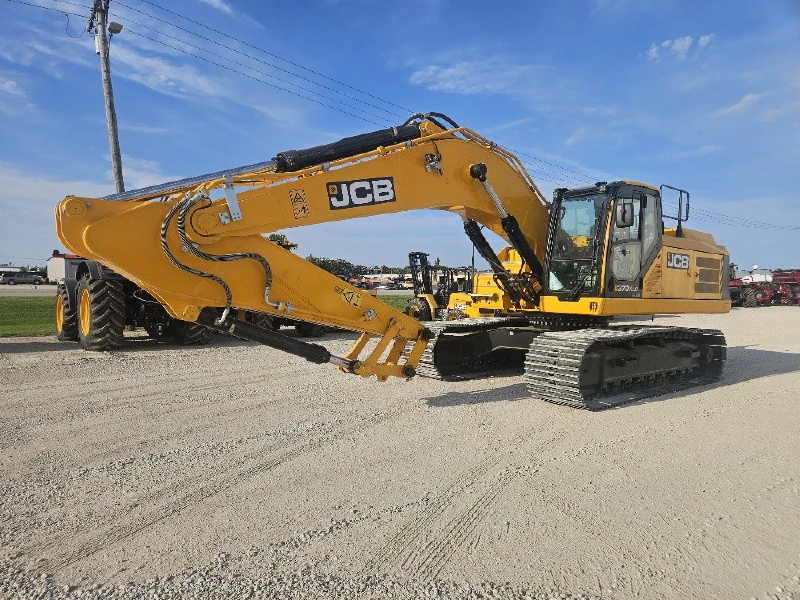

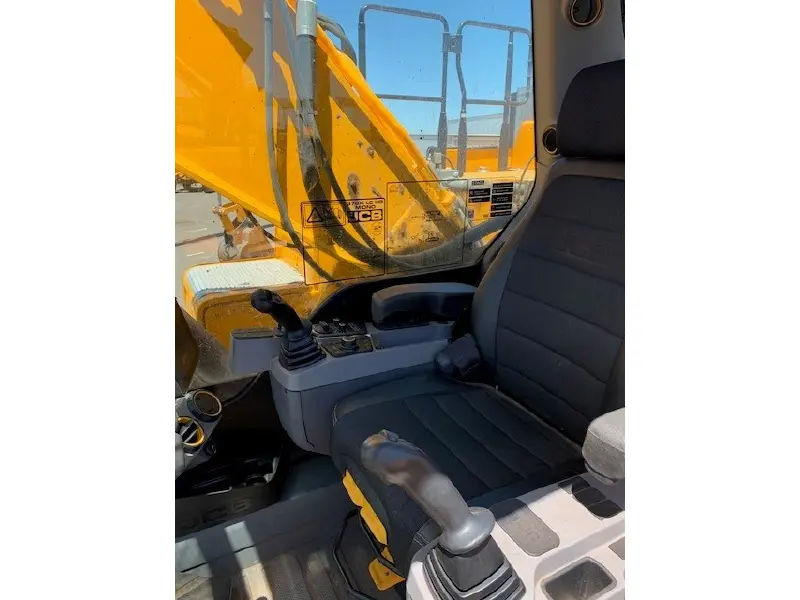

2026 JCB 370X
Quick Inquiry
Key Features and Details
- Stock #3266630
- CategoryExcavators
- ClassEarthmoving
- Hours173
Dealer Comments
2026 JCB 370X, Tested to Extremes.No stone has been left unturned in the development of the JCB 370X its a machine thats been tested to extremes. Every element of this class-leading 35-40 ton excavator is designed to deliver enhanced performance and reliability, so you can be sure its up to the challenge of the biggest, toughest projects.Disclaimer: Advertised pricing is estimated and subject to change without notice. Prices shown do not include applicable taxes, financing fees, freight, delivery, setup charges, attachments, accessories, or other equipment-related costs. Contact Southwest JCB for current pricing and a complete quote.
Specifications
| Body | Earthmoving |
|---|---|
| Category | Excavators |
| Make | JCB |
| Stock Number | 3266630 |
| Veh Type | New |
| Vin | 3266630 |
| Year | 2026 |
| Dig Depth | 7569 mm [24 ft 10 in] |
|---|---|
| Track Length On Ground | 4013 mm [13 ft 2 in] |
| Track Gauge | 2591 mm [8 ft 6 in] |
| Hydraulic System | 401 L [106 gal] |
| Ground Bearing Pressure | 77 kPa [11.2 psi] |
| Boom Size | 6.45 m [21 ft 2 in] |
| Min Arm Length | 2630 mm [8 ft 8 in] |
| Standard Arm Length | 3230 mm [10 ft 7 in] |
| Max Arm Length | 9500 mm [31 ft 2 in] |
| Main Pumps | 2 |
| Main Pump Flow | 604 L/min [160 gal/min] |
| Boom Pressure | 350 bar [5076 psi] |
| Arm Pressure | 350 bar [5076 psi] |
| Attachment Pressure | 350 bar [5076 psi] |
| Number Of Boom Options | 2 |
| Number Of Mono Booms | 2 |
| Number Of Arm Options | 4 |
| Carrier Rollers Per Side | 2 |
| Track Rollers Per Side | 9 |
| Shoe Width | 600 mm [24 in] |
| Shoe Type | Triple grouser |
| Hydraulic Tank | 174 L [46 gal] |
| Arm Tearout | 186 kN [41725 lbf] |
| Bucket Breakout | 249 kN [56067 lbf] |
| Digging Reach | 11328 mm [37 ft 2 in] |
| Ground Level Reach | 11125 mm [36 ft 6 in] |
| Dig Height | 10363 mm [34 ft] |
| Dump Height | 6960 mm [22 ft 10 in] |
| Vertical Wall | 6833 mm [22 ft 5 in] |
| Max Capacity | 2.4 m³ [3.1 yd³] |
| Bucket Weight Largest | 2055 kg [4530 lb] |
| Bucket Weight Smallest | 808 kg [1782 lb] |
| Bucket Weight Standard | 1121 kg [2471 lb] |
| Min Capacity | 0.84 m³ [1.1 yd³] |
| Reference Capacity | 2.1 m³ [2.7 yd³] |
| Cylinders | 6 |
|---|---|
| Engine Hours | 173 |
| Engine Manufacturer | Cummins |
| Engine Model | L9 |
| Displacement | 8.9 L [543 cu in] |
| Fuel Tank | 591 L [156 gal] |
| Cooling | Water |
| Emissions | Diesel T4 SV |
| Engine Oil | 23 L [6 gal] |
| Cooling System | 42 L [11 gal] |
| Rated Speed | 1700 rpm |
| Aspiration | Turbo |
| Def Tank | 72 L [19 gal] |
| Boost Pressure | 380 bar [5511 psi] |
| Height | 3861 mm [12 ft 8 in] |
|---|---|
| Length | 11227 mm [36 ft 10 in] |
| Operating Weight | 38189 kg [84192 lb] |
| Ground Clearance | 533 mm [21 in] |
| Width Overall | 3505 mm [11 ft 6 in] |
| Undercarriage Length | 4953 mm [16 ft 3 in] |
| Tail Swing Radius | 3607 mm [11 ft 10 in] |
| Width Over Tracks | 3200 mm [10 ft 6 in] |
| Front Slew Radius | 4470 mm [14 ft 8 in] |
| Transport Weight Mono Boom | 38189 kg [84192 lb] |
| Travel Speed High | 5.1 km/h [3.17 mph] |
|---|---|
| Travel Speed Low | 3 km/h [1.86 mph] |
| Torque | 1527 Nm [1126 lbf·ft] |
| Gross Output | 240 kW [322 hp] |
| Torque Rated Speed | 1400 rpm |
| Gradeability | 35° |
| Slew Speed | 9.1 rpm |
| Tractive Force | 285 kN [64071 lbf] |
| Gradeability Percentage | 70% |
| Track Shoes Per Side | 48 |
|---|
Please confirm all features with dealer.
