Key Features and Details

Stock #151373
CategorySkid Steers
ClassEarthmoving
Hours1

Dealer Comments

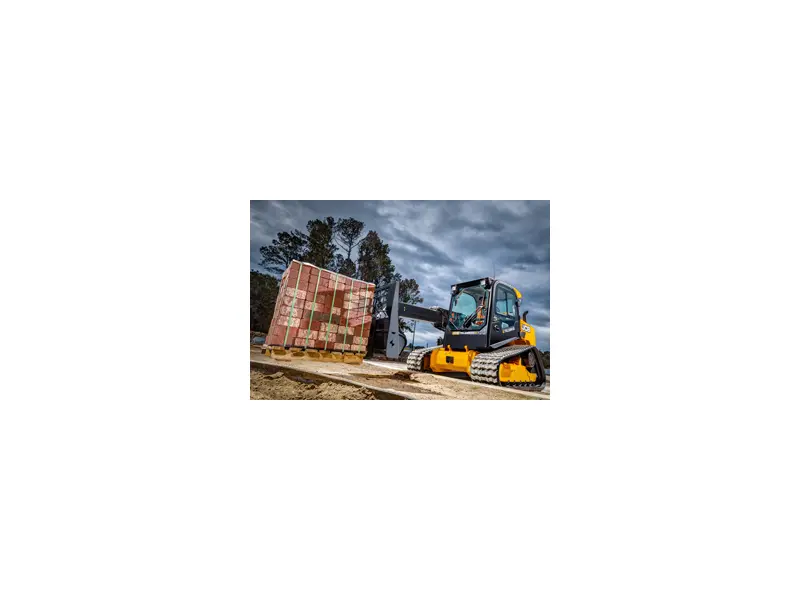

2026 JCB 3TS-8T, Introducing a unique machine with endless possibilities. The JCB Teleskid is the first skid steer or compact tracked loader with a telescopic boom, making it the most versatile machine youve ever seen. It can reach higher, further and deeper than any other skid steer on the market, and it can access areas you wouldnt have thought possible.

Specifications

Body	Earthmoving
Cab Type	Swing Up - Meshed
Category	Skid Steers
Make	JCB
Stock Number	151373
Veh Type	New
Vin	N001008435
Year	2026

Max Dump Height	2400 mm [94 in]
Lift Height	2900 mm [114 in]
Tipping Load	4789 kg [10558 lb]
Track Shoe Width	450 mm [17.7 in]
Track Length On Ground	2100 mm [83 in]
Track Gauge	1550 mm [59.3 in]
Height To Hinge Pin	3200 mm [126 in]
Max Dump Height Reach	700 mm [27 in]
Turning Radius Rear Corner	1760 mm [69 in]
Turning Radius Bucket Corner	2300 mm [90 in]
Rear Departure Angle	29°
Dump Angle	42°
Ground Level Rollback	30°
System Pressure	230 bar [3335 psi]
Hydraulic Power	34.16 kW [46 hp]
Hydraulic Power Option	47.44 kW [64 hp]
Pump Flow	90 L/min [24 gal (US)/min]
Pump Flow Option	125 L/min [33 gal (US)/min]
System Pressure Option	230 bar [3335 psi]
Undercarriage Type	Hi Mount Drive Motor
Lift Geometry	Vertical & Radial
Structure	ROPS / FOPS
Steering Type	Track
Track Rollers	5
Track Type	Rubber
Heaped Capacity	0.43 m³ [15 ft³]
Operating Capacity	1676 kg [3695 lb]
Breakout Lift	24.7 kN [5557 lbf]
Breakout Bucket	28.9 kN [6517 lbf]
Controls Loader	Joystick
Controls Steering	Joystick
Full Height Rollback	94°
Hydraulic System Capacity	55 L [14.5 gal (US)]

Engine Hours	1
Fuel Tank	103 L [27.2 gal (US)]
Cooling System	22 L [5.8 gal (US)]

Transmission Type	Hydrostatic
Drive Method	Sprocket
Transmission Motors	2

Operating Weight	5722 kg [12615 lb]
Ground Clearance	238 mm [9.4 in]
Width With Bucket	1850 mm [73 in]
Height Top Of Cab	2100 mm [83 in]
Length With Bucket	3800 mm [149 in]
Width No Bucket	2000 mm [77 in]
Length No Bucket	3020 mm [119 in]
