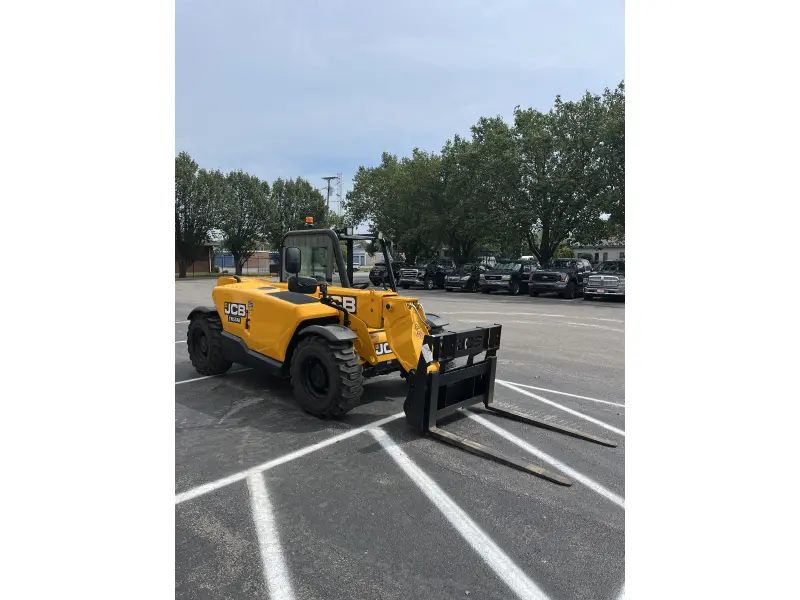

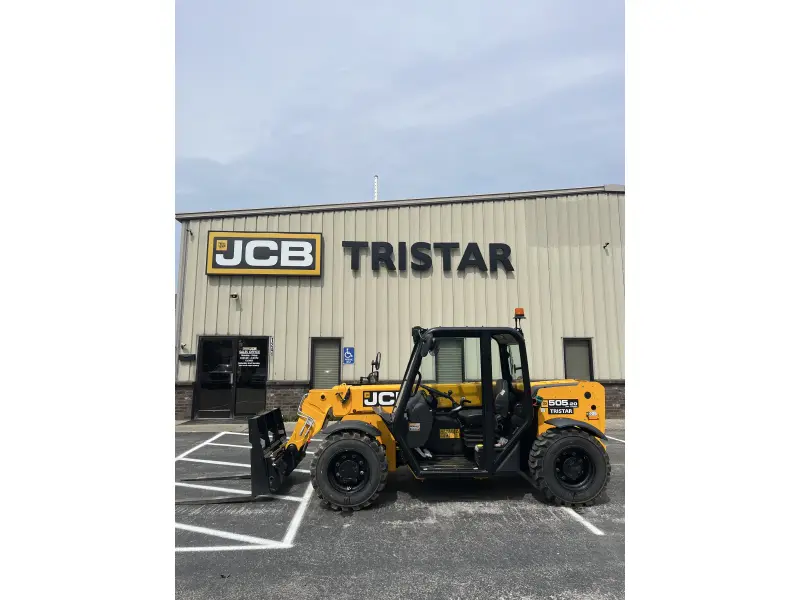

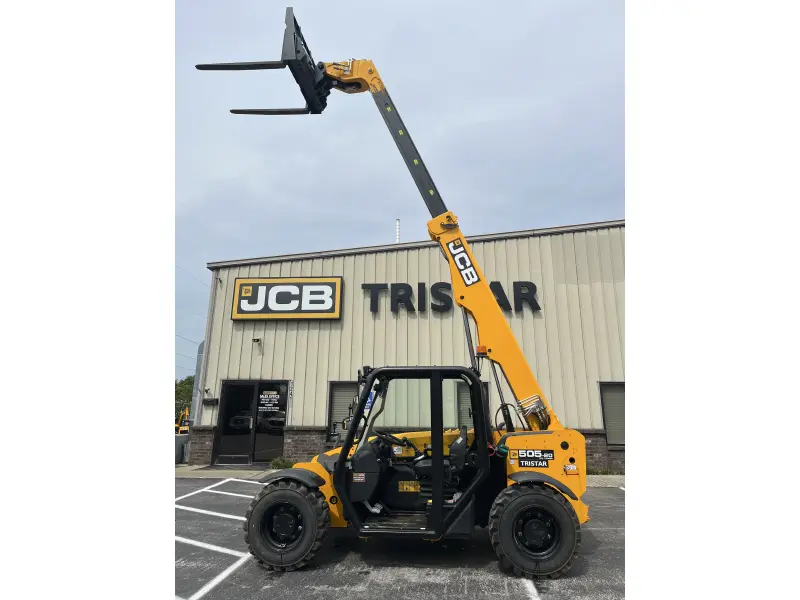

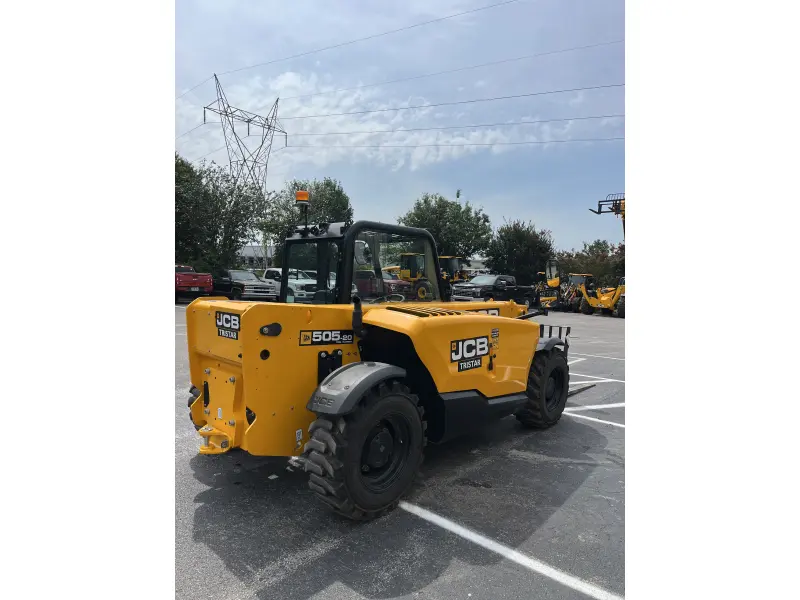

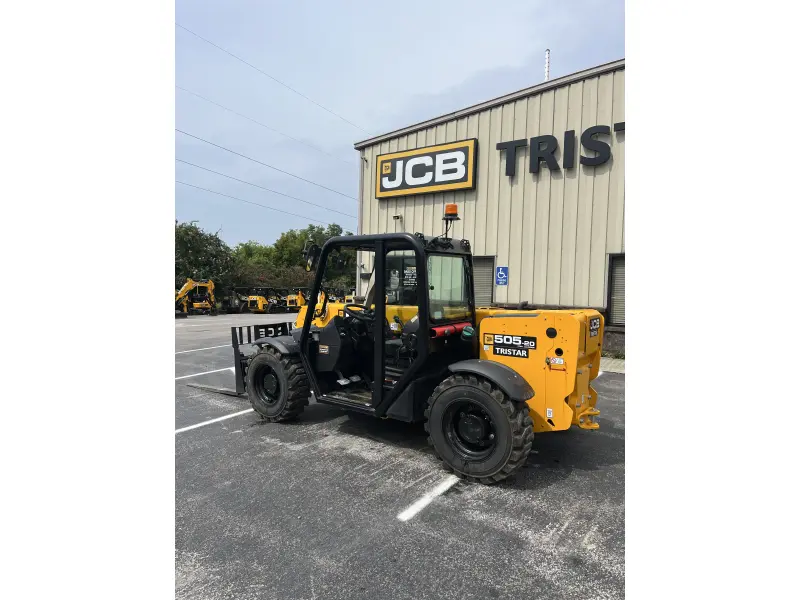

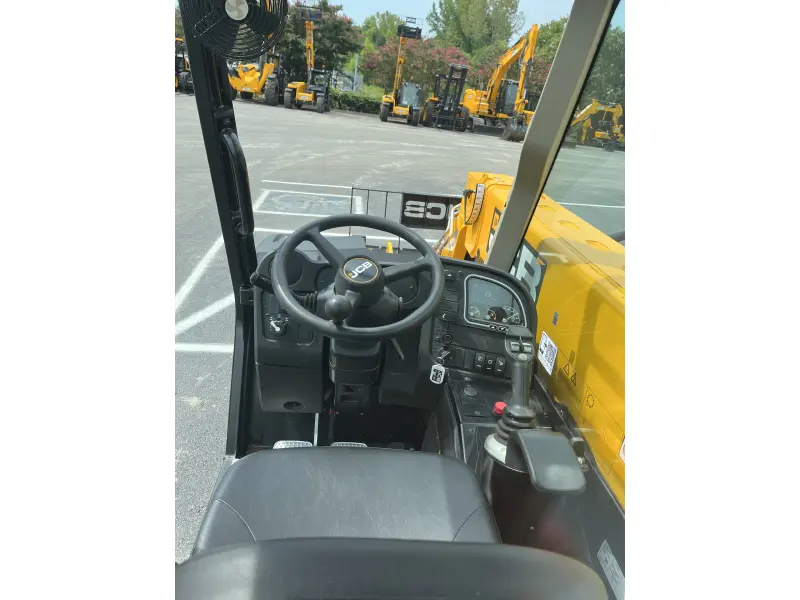

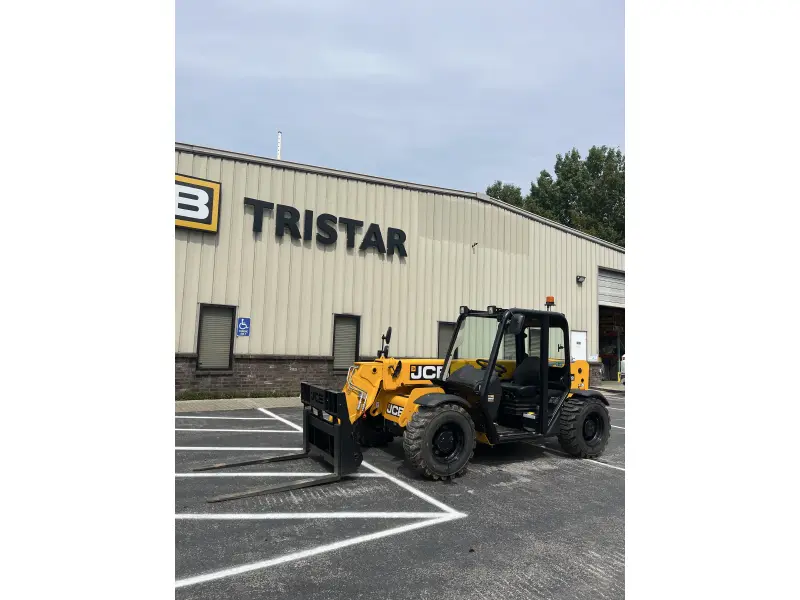

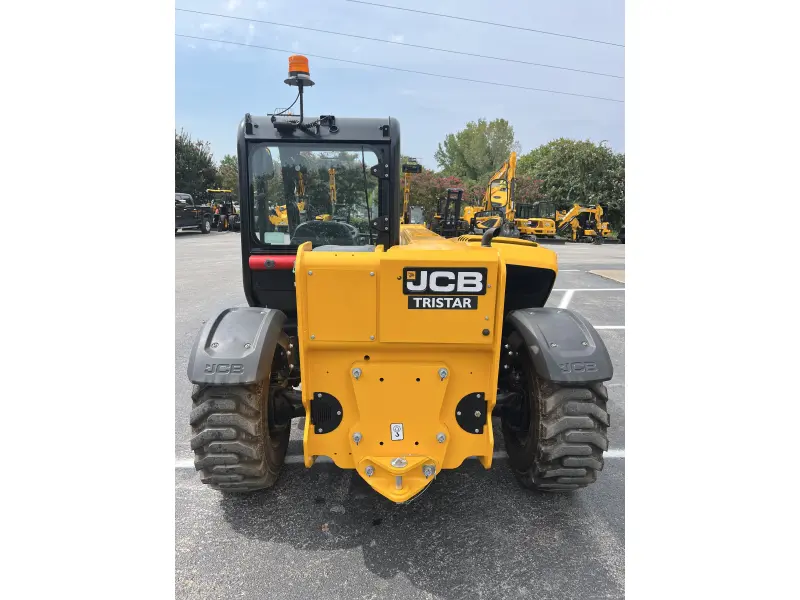

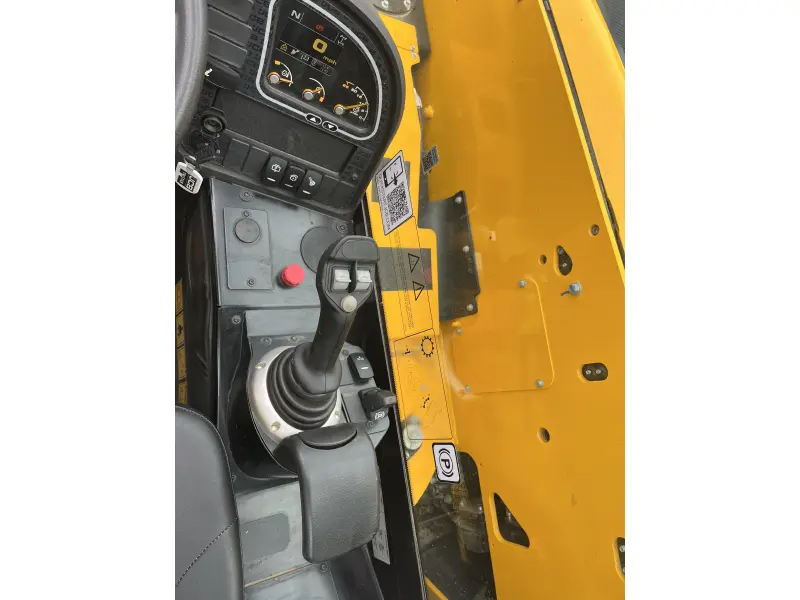

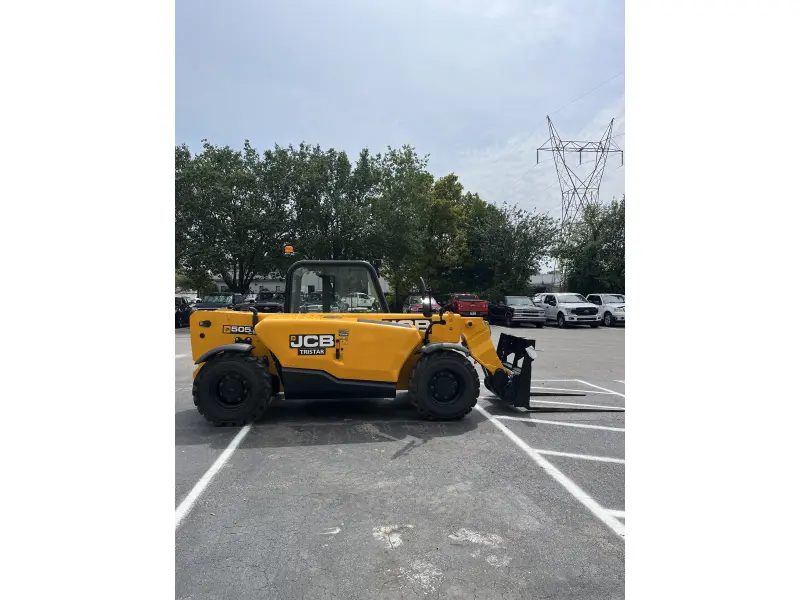

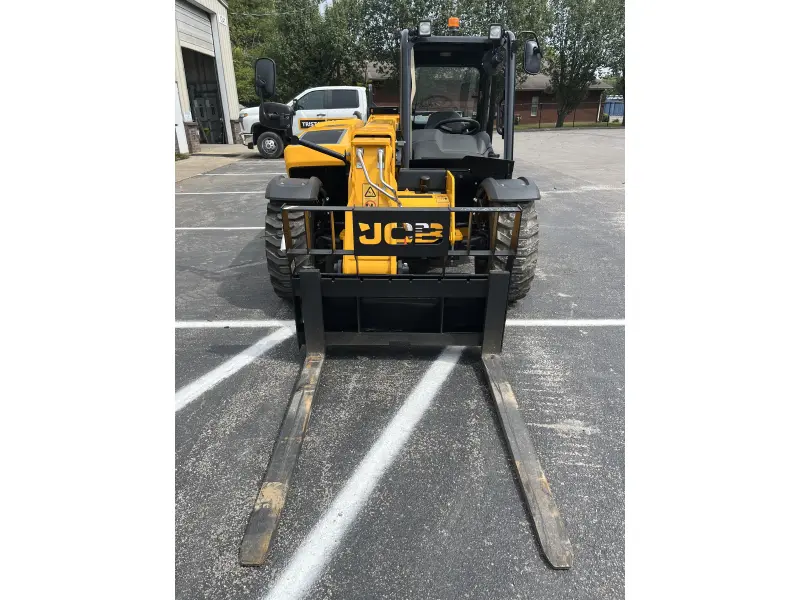

2026 JCB 505-20TC
New
New
New
New
New
New
New
New
New
New
New
New
New
New
Quick Inquiry
Key Features and Details
- Stock #001238
- CategoryTelehandler
- ClassLifting
- Hours16
Dealer Comments
2026 JCB 505-20TC, Every JCB telehandler is designed to offer superb productivity, and the 505-20TC telehandler is no different. Excellent visibility and maneuverability, versatile performance, potent power and innovation-driven efficiency are all part of the package.
Specifications
| Body | Lifting |
|---|---|
| Category | Telehandler |
| Make | JCB |
| Stock Number | 001238 |
| Veh Type | New |
| Vin | 3554402 |
| Year | 2026 |
| Cab Position | Left |
| Chassis Type | Rigid |
| Dimension Configuration | With Forks |
| Platform | LiveLink |
| Telematics Platform | LiveLink |
| Wheelbase | 2390 mm [94 in] |
|---|---|
| Track Gauge | 1530 mm [60 in] |
| Pump Flow | 80 L/min [21 gal/min] |
| Steering Type | 2W / 4W / Crab |
| Hydraulic System Pressure | 235 bar [3408 psi] |
| Carriage Rotation Angle | 125 ° |
| Fork Load Centre | 610 mm [24 in] |
| Fork Max Lift Capacity | 2500 kg [5500 lb] |
| Fork Stability Rating Standard | ANSI B56.6 |
| Ground Reach At Max Capacity | 1372 mm [54 in] |
| Hydraulic Controls | Joystick - Servo |
| Hydraulic System Capacity | 65 L [17 gal] |
| Lift Envelope General Max Lift Height | 6000 mm [240 in] |
| Lift Envelope General Max Reach | 3500 mm [138 in] |
| Lift Envelope Unstabilised Max Boom Angle | 67 ° |
| Lift Envelope Unstabilised Max Lift Height | 6000 mm [240 in] |
| Lift Envelope Unstabilised Max Reach | 3500 mm [138 in] |
| Lift Envelope Unstabilised Min Boom Angle | -2.5 ° |
| Lift Performance General Max Capacity | 2500 kg [5500 lb] |
| Lift Performance General Max Height Capacity | 1750 kg [3900 lb] |
| Lift Performance General Max Reach Capacity | 800 kg [1750 lb] |
| Lift Performance Unstabilised Max Capacity | 2500 kg [5500 lb] |
| Lift Performance Unstabilised Max Height Capacity | 1750 kg [3900 lb] |
| Lift Performance Unstabilised Max Reach Capacity | 800 kg [1750 lb] |
| Max Capacity Lift Height | 5182 mm [204 in] |
| Max Depth Below Ground | -121.92 mm [-4.8 in] |
| Pump Type | Gear |
| Reach At Max Lift | -150 mm [-6 in] |
| Reach With 1000 Kg | 2640 mm [103 in] |
| Turn Radius Over Tires | 3700 mm [145 in] |
| Engine Displacement | 2.5 L [153 in³] |
|---|---|
| Engine Hours | 16 |
| Engine Manufacturer | Kohler |
| Fuel Tank Capacity | 75 L [20 gal] |
| Engine Cooling | Water |
| Emissions | DieselT4 |
| Engine Aspiration | Turbo |
| Engine Rated Speed | 2200 rpm |
| Transmission Type | Hydrostatic |
|---|---|
| Drive | 4WD |
| Front Diff Lock | LSD [Opt] |
| Gears | 2F - 2R |
| Parking Brakes Actuation | Spring Applied / Hydraulic Release (SAHR) |
| Parking Brakes Type | Wet Multi Disc - Front Axle |
| Rear Diff Lock | Torque Proportional |
| Service Brakes Actuation | Hydraulic |
| Service Brakes Type | Wet Multi Disc - Inboard |
| Transmission Control | FNR - Joystick Controls |
| Transmission Selection | Automatic |
| Ground Clearance | 230 mm [9 in] |
|---|---|
| Cab Width | 880 mm [35 in] |
| Front Axle Centre To Front Of Carriage | 1020 mm [40 in] |
| Front Tyre Size | 12 - 16.5 |
| Height Over Cab | 1890 mm [74 in] |
| Length To Front Of Carriage | 4000 mm [157 in] |
| Length To Front Of Tires | 3380 mm [133 in] |
| Operating Width | 1840 mm [72 in] |
| Rear Tyre Size | 12 - 16.5 |
| Torque | 300 Nm [221 lbf·ft] |
|---|---|
| Gross Output | 55 kW [74 hp] |
| Torque Rated Speed | 1500 rpm |
| Forward Max Speed | 25 km/h [15 mph] |
Please confirm all features with dealer.
