2026 JCB S3246E

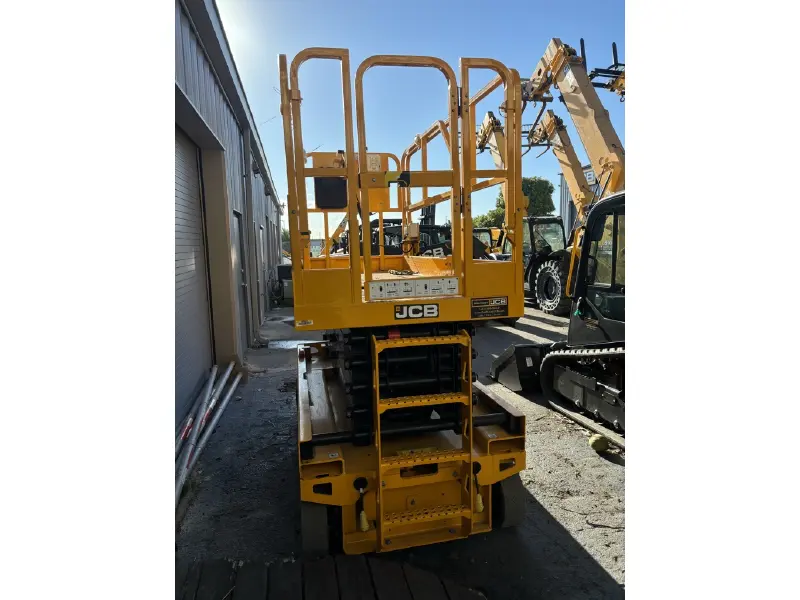

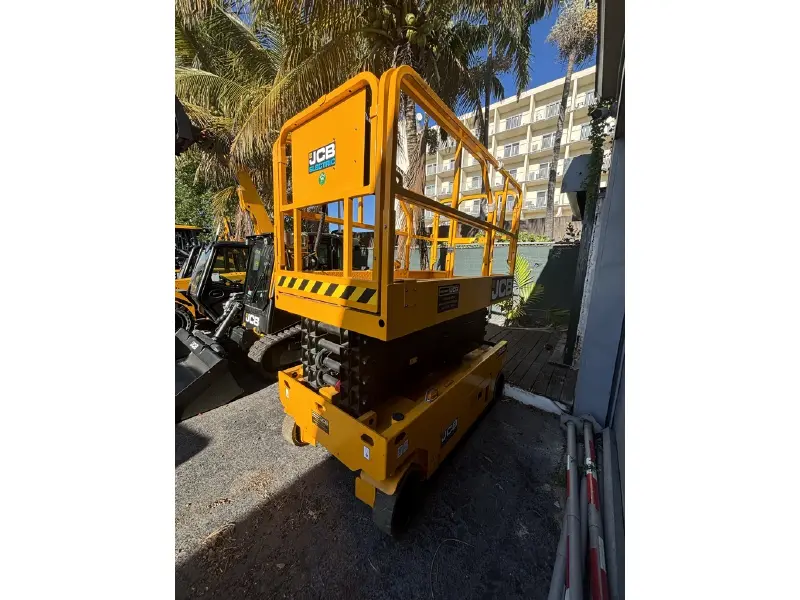

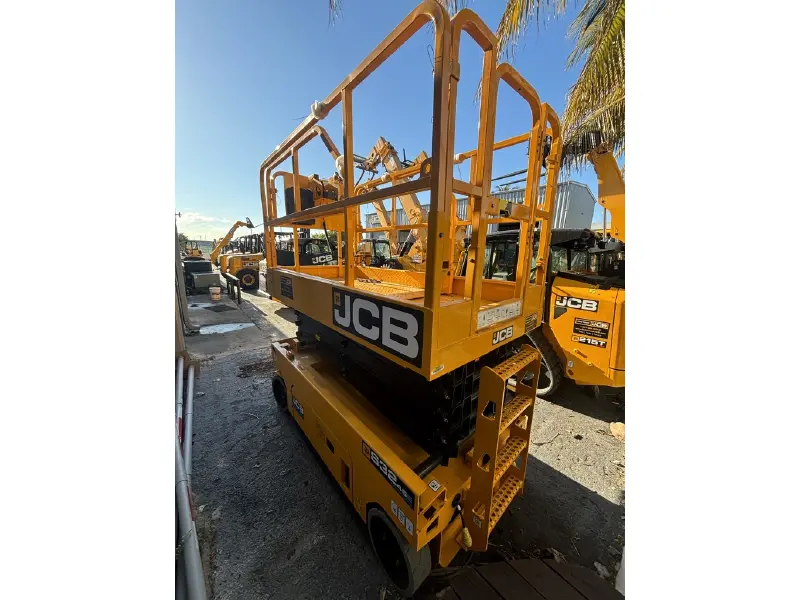

JCB S3246E Scissor Lift

***Unit not in stock*** Will be a new order with 2-8 weeks delivery time.

• Max platform height: 31 ft 9 in (9.68 m)
• Max working height: 37 ft 9 in (11.68 m)
• Platform capacity: 320 kg (705 lb)
• Platform size: 89 in x 46 in (2.25 m x 1.15 m)
• Platform extension: 35 in (0.9 m)
• Indoor occupants: 2 / Outdoor occupants: 1
• Overall width (stowed): 3 ft 10.5 in (1.18 m)
• Overall length: 7 ft 10 in (2.39 m)
• Stowed height (guardrails folded): 6 ft 1 in (1.86 m)
• Stowed height (guardrails up): 8 ft 2 in (2.48 m)
• Ground clearance: 4 in (0.1 m)
• Wheelbase: 73 in (1.85 m)
• Turning radius (outside): 7 ft 8 in (2.35 m)
• Gradeability: 25%
• Max driving speed (stowed): 2 mph (3.2 km/h)
• Max driving speed (raised): 0.5 mph (0.8 km/h)
• Lift (raise) time loaded: 49–54 seconds
• Lower time loaded: 40–46 seconds
• Tyres: Non‑marking 15 x 5 in (380 x 133 mm)

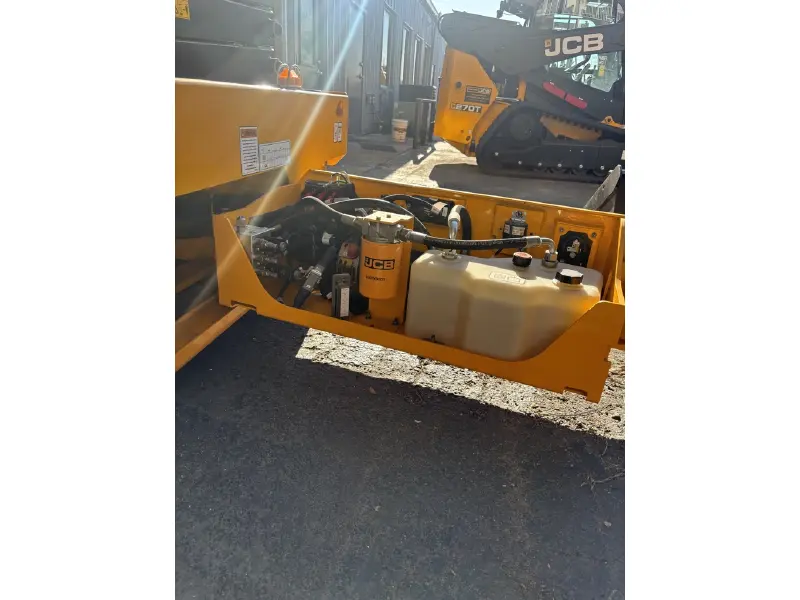

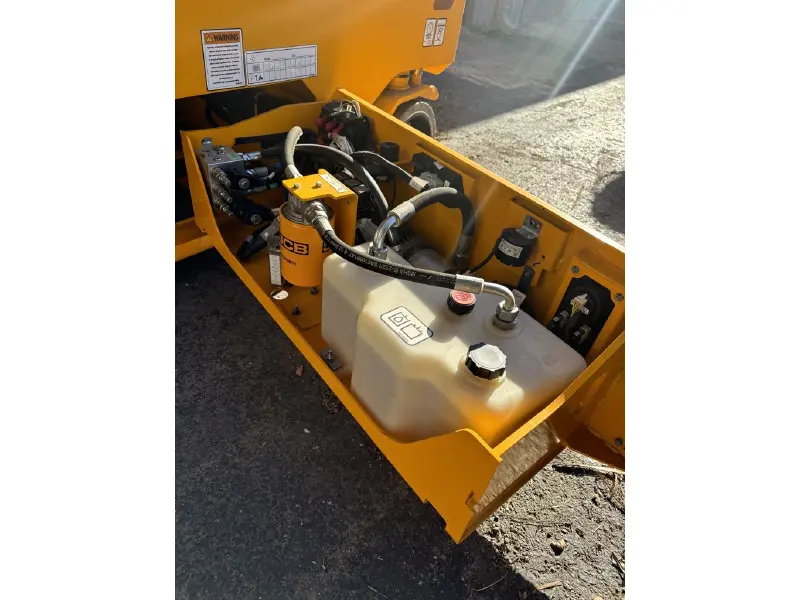

• Hydraulic system pressure: 3481 psi
• Hydraulic tank volume: 12 L
• Battery pack: 6V x 4 (240 Ah)
• Charger input voltage: 100–240V AC
• Power unit: 4.5 hp electric drive
• Operating weight: 2,866 kg (6,287 lb)
• Outdoor rated; wind speed limit 28 mph
