Description

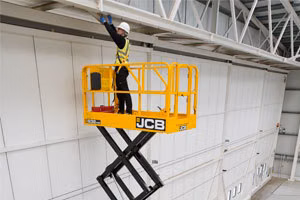

JCB have used their experience in designing tough, hardworking equipment to ensure their electric scissors range are also built to higher standards. But as well as giving you tough, hardworking equipment, we also give you choice. Our access platforms are now available as hydraulic drive and electric drive. Whichever you choose, all come with higher levels of safety, ease of use, reliability and serviceability as standard. S3246E – robust electric scissor lift for two-person operations indoors to a height of 32.9f
Specifications
Manufacturer
JCB
Model
S3246E
Year
2026
Category
Aerial Work Platforms
Subcategory
Access Platforms
Emissions
Electric
Machine Power Source
Battery
Driveline Power Source
Electric
DC Power
240 Ah
Carrier
Self Propelled
DC Voltage
24 V
Tire Type
Solid Non Marking
Overall Basket Capacity
320 kg [705 lb]
Standard Basket Type
Extension
Lift Times
49
Lower Times
40
Drive Speed - Lowered
4.5 km/h [2.8 mph]
Drive Speed - Elevated
0.8 km/h [0.5 mph]
Gradeability - 2WD / Tracks
25 %
Number Of Batteries
4
Battery Voltage
6 V
Hydraulic Tank
16 L [4.2 gal]
Operating Weight
2852 kg [6287 lb]
Tire Size
380 x 133
Transport Length
2.39 m [7ft 10in]
Transport Height
1860 mm [73 in]
Overall Width
1180 mm [46.5 in]
Stowed Length
2.39 m [7ft 10in]
Static Dimensions Basket Length
2.25 m [7ft 5in]
Overall Length - With Standard Basket
2.39 m [7ft 10in]
Wheelbase
1850 mm [73 in]
Extension Length - Front
0.9 m [2ft 11in]
Stowed Height - Rails Up
2.48 m [8ft 2in]
Stowed Height - Rails Lowered
1.86 m [6ft 1in]
Ground Clearance
100 mm [4 in]
Static Dimensions Basket Width
1.15 m [3ft 9in]
Overall Width With Standard Basket
1.18 m [3ft 11in]
Max Basket Height
9.68 m [31ft 9in]
Working Height
11.68 m [38ft 4in]
Max Drive Height
9.68 m [31ft 9in]
Lift Envelope Basket Length
2.25 m [7ft 5in]
Lift Envelope Basket Width
1.15 m [3ft 9in]
Turning Radius - Outside
2.35 m [7ft 8in]
